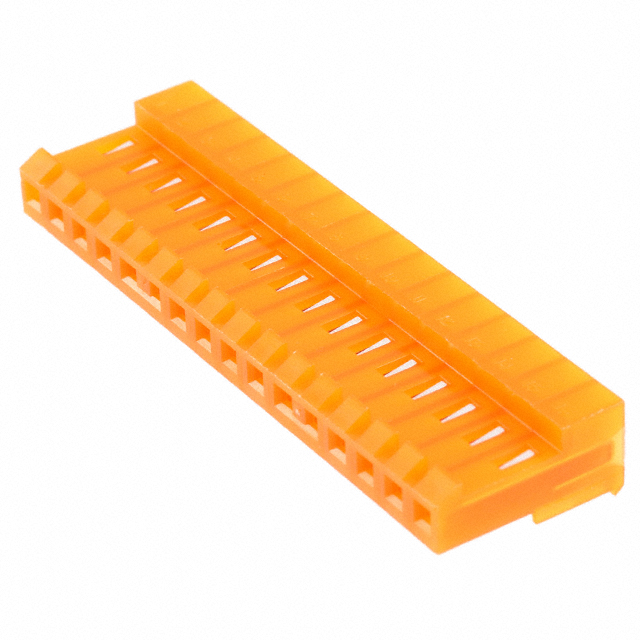

4-640426-6
Or copy the link below:
- Mfr.Part #
- 4-640426-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS IDC 18AWG TIN
- Stock
- 300
- In Stock ：
- 300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Termination :
- IDC, IDT
- Wire/Cable Type :
- Discrete
- Depth :
- 9.02mm
- Number of Positions :
- 16
- Number of Contacts :
- 16
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Flammability Rating :
- UL94 V-2
- Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 221°C
- Underplate Material :
- Nickel
- Length :
- 63.4mm
- Operating Supply Voltage :
- 600V
- Circuit Application :
- Power
- Contact Resistance :
- 3mOhm
- Packaging :
- Bulk
- Pitch :
- 0.156 3.96mm
- Max Voltage Rating (AC) :
- 600V
- Current Rating :
- 7A
- Gender :
- Receptacle
- Insulation Diameter :
- 2.413 mm
- Series :
- MTA-156
- Voltage - Rated AC :
- 600V
- Mount :
- Cable, Free Hanging
- Contact Type :
- Female Socket
- Published :
- 2004
- Connector Type :
- Receptacle
- Contact Current Rating :
- 7A
- Housing Color :
- Orange, White
- Plating Thickness :
- 30μm
- Approval Agency :
- CSA
- Wire/Cable Gauge :
- 18 AWG
- Wire Gauge :
- 18 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Height :
- 9.02mm
- Feature :
- Closed End
- Mounting Type :
- Free Hanging (In-Line)
- Contact Plating :
- Tin
- Number of Power Positions :
- 16
- Shrouding :
- No
- Lead Pitch :
- 3.96mm
- Contact Retention :
- With
- Min Operating Temperature :
- -67°C
- Color :
- Orange
- Housing Material :
- Nylon
- Contact Finish :
- Tin
- Contact Gender :
- FEMALE
- Cable Termination :
- IDC
- Fastening Type :
- Locking Ramp
- Wire Type :
- Discrete
- Radiation Hardening :
- No
- Sealable :
- No
- Orientation :
- RIGHT ANGLE
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Factory Lead Time :
- 20 Weeks
- Datasheets
- 4-640426-6
4-640426-6 Documents
4-640426-6 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
