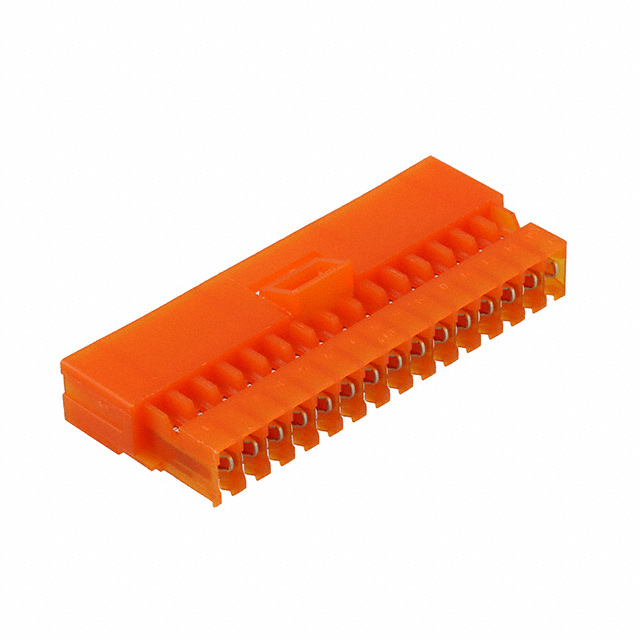

4-641435-5
Or copy the link below:
- Mfr.Part #
- 4-641435-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 15POS IDC 18AWG TIN
- Stock
- 28,256
- In Stock ：
- 28,256
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-2
- Contact Type :
- Male Pin
- Contact Finish :
- Tin
- Color :
- Orange
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Body Breadth :
- 0.487 inch
- Wire Type :
- Discrete or Ribbon Cable
- Operating Supply Voltage :
- 600V
- Sealable :
- No
- Pitch :
- 0.156 3.96mm
- Termination :
- IDC, IDT
- Circuit Application :
- Power
- Rated Current (Signal) :
- 7A
- Depth :
- 12.37mm
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Filter Feature :
- No
- Plating Thickness :
- 80μm
- Max Operating Temperature :
- 221°C
- Min Operating Temperature :
- -67°C
- DIN Conformance :
- No
- Contact Current Rating :
- 7A
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Insulation Diameter :
- 2.413 mm
- Feature :
- Closed End
- Height :
- 12.37mm
- Cable Termination :
- IDC
- Mount :
- Cable, Free Hanging
- Contact Gender :
- Male
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Nylon
- Flammability Rating :
- UL94 V-2
- Current Rating :
- 7A
- Factory Lead Time :
- 15 Weeks
- Max Voltage Rating (AC) :
- 600V
- Orientation :
- RIGHT ANGLE
- IEC Conformance :
- No
- Lead Free :
- Not Applicable
- Length :
- 63.4mm
- Wire/Cable Gauge :
- 18 AWG
- Wire Gauge :
- 18 AWG
- Durability :
- 25 Cycles
- MIL Conformance :
- No
- Approval Agency :
- CSA
- Series :
- MTA-156
- Underplate Material :
- Nickel
- Shrouding :
- yes
- ELV :
- Compliant
- Wire/Cable Type :
- Discrete
- Polarization Key :
- POLARIZED HOUSING
- Number of Power Positions :
- 15
- HTS Code :
- 8536.69.40.40
- RoHS Status :
- RoHS Compliant
- Connector Type :
- PLUG
- Number of Rows :
- 1
- Contact Resistance :
- 3mOhm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pbfree Code :
- yes
- Published :
- 2004
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Total Number of Contacts :
- 15
- Contact Retention :
- With
- Datasheets
- 4-641435-5
