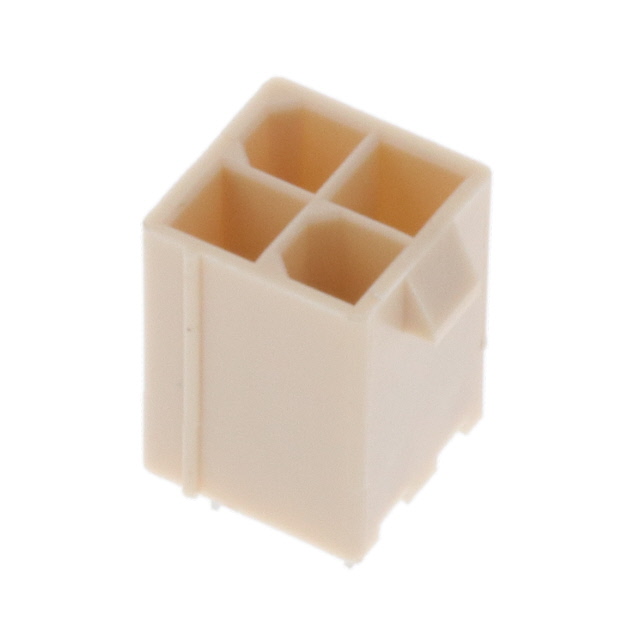

4-1775099-0
Or copy the link below:
- Mfr.Part #
- 4-1775099-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.165 TIN PCB
- Stock
- 282
- In Stock ：
- 282
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Current Rating :
- 9A
- Mating Retention :
- With
- ELV :
- Compliant
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.504 12.80mm
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Published :
- 2005
- Operating Supply Voltage :
- 250V
- Termination :
- Solder
- Circuit Application :
- Power
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Series :
- ATX
- Number of Contacts :
- 4
- Fastening Type :
- Locking Ramp
- Contact Current Rating :
- 9A
- Contact Material :
- Brass
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Pitch :
- 4.191mm
- Current Rating (Amps) :
- 9A
- Shielding :
- Unshielded
- PCB Mount Retention :
- Without
- Factory Lead Time :
- 13 Weeks
- Housing Color :
- Beige
- PCB Mounting Orientation :
- Vertical
- Number of Power Positions :
- 4
- Connector Type :
- Receptacle
- Contact Plating :
- Tin
- Contact Finish Thickness - Mating :
- 120.0μin 3.05μm
- Housing Material :
- Nylon
- Contact Length - Post :
- 0.126 3.20mm
- Number of Rows :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Post :
- 120.0μin 3.05μm
- Mating Alignment :
- With
- Operating Temperature :
- -25°C~85°C
- Sealable :
- No
- Voltage - Rated :
- 250VAC
- Contact Type :
- Female Socket
- Mounting Type :
- Through Hole
- Number of Positions :
- 4
- Insulation Color :
- Ivory
- Pitch - Mating :
- 0.165 4.20mm
- Number of Pins :
- 4
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Contact Retention :
- With
- Packaging :
- Tray
- Datasheets
- 4-1775099-0
2 Rows Receptacle Solder Brass Through Hole Tray Tin Polyamide (PA9T), Nylon 9T 4 Positions Female Socket
4-1775099-0 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the ATX Series.4 pins are present on the device.Its operating supply voltage is 250V.It operates at an operating temperature of -25°C~85°C.
4-1775099-0 Features
ATX series
4-1775099-0 Applications
There are a lot of TE Connectivity AMP Connectors
4-1775099-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
