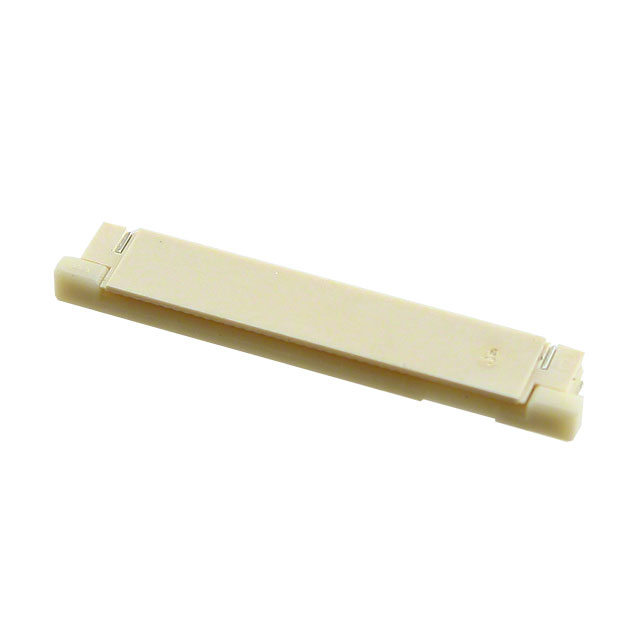

4-1734839-0
Or copy the link below:
- Mfr.Part #
- 4-1734839-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 40POS 0.50MM R/A
- Stock
- 8,327
- In Stock ：
- 8,327
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Operating Temperature :
- -20°C~85°C
- Termination :
- Solder
- Contact Finish Thickness :
- Flash
- Packaging :
- Tape and Reel (TR)
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 500mA
- Locking Feature :
- Slide Lock
- Number of Positions :
- 40
- Cable End Type :
- Tapered
- Length :
- 25.43mm
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 500mA
- Depth :
- 5.1mm
- Pitch :
- 0.020 0.50mm
- Current Rating (Amps) :
- 0.5A
- Contact Material :
- Phosphor Bronze
- Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Filter Feature :
- No
- Height :
- 2.05mm
- Contact Location :
- Top
- Housing Material :
- Thermoplastic
- Shielding :
- Unshielded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Mixed Contacts :
- No
- Flat Flex Type :
- FPC
- DIN Conformance :
- No
- Total Number of Contacts :
- 40
- Housing Color :
- Natural
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Connector/Contact Type :
- Contacts, Top
- UL Flammability Code :
- 94V-0
- Connector Type :
- Connector, Receptacle, Socket
- FFC, FCB Thickness :
- 0.30mm
- Wire/Cable Type :
- Flat Flex
- PCB Mount Retention :
- With
- Mount :
- Surface Mount
- Operating Supply Voltage :
- 250V
- Lead Free :
- Lead Free
- Height Above Board :
- 0.081 2.05mm
- Number of Rows :
- 1
- MIL Conformance :
- No
- Factory Lead Time :
- 17 Weeks
- REACH SVHC :
- Unknown
- IEC Conformance :
- No
- Sealable :
- No
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Surface Mount, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Width :
- 5.1mm
- ELV :
- Compliant
- Actuator Color :
- Ivory
- Published :
- 2006
- Gender :
- Receptacle
- PCB Mount Alignment :
- Without
- Datasheets
- 4-1734839-0
FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 40 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
4-1734839-0 Overview
Packaging is Connector, Receptacle, Socket.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Several benefits come from the Solder Retention, Zero Insertion Force (ZIF) feature.There is a mounting hole at Surface Mount.It runs on 250V voltage.Devices operate at -20°C~85°C operating temperatures.
4-1734839-0 Features
4-1734839-0 Applications
There are a lot of TE Connectivity AMP Connectors
4-1734839-0 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
