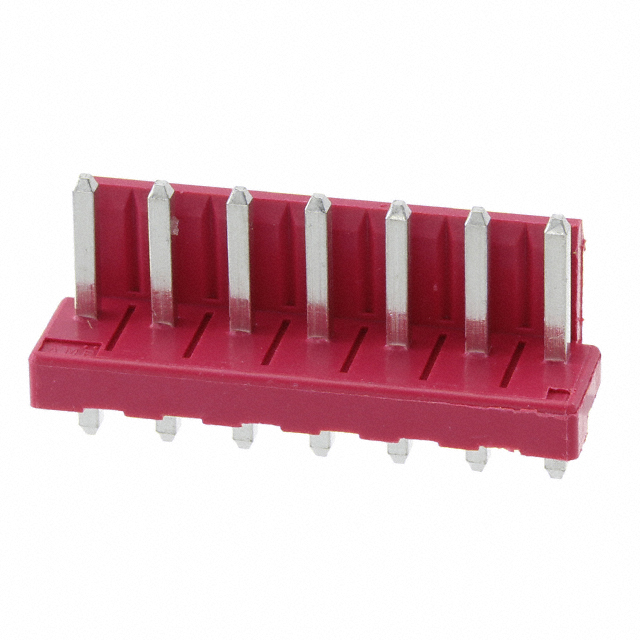

4-1123723-7
Or copy the link below:
- Mfr.Part #
- 4-1123723-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 3.96MM
- Stock
- 11,186
- In Stock ：
- 11,186
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -25°C
- Packaging :
- Bulk
- Insulation Color :
- Red
- Factory Lead Time :
- 20 Weeks
- Width :
- 10.7mm
- Insulation Height :
- 0.118 3.00mm
- Current Rating (Amps) :
- 7.5A
- Voltage - Rated :
- 250VAC
- Mating Post Length :
- 7.7mm
- Published :
- 2005
- Material :
- Nylon
- Number of Contacts :
- 7
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Housing Material :
- PBT
- Applications :
- General Purpose, Industrial, Lighting
- Contact Finish - Mating :
- Tin
- Radiation Hardening :
- No
- PCB Mount Alignment :
- Without
- Shrouding :
- Shrouded - 1 Wall
- Plating Thickness :
- 800 nm
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 7.5A
- Plating :
- Tin
- Mounting Type :
- Through Hole
- Sealable :
- No
- PCB Mount Retention :
- Without
- Housing Color :
- Red
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Mating Retention :
- With
- PCB Mounting Orientation :
- Vertical
- Contact Finish - Post :
- Tin
- PCB Thickness :
- 1.6002mm
- Orientation :
- Vertical
- Pitch - Mating :
- 0.156 3.96mm
- Overall Contact Length :
- 0.567 14.40mm
- Number of Positions :
- 7
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Operating Supply Voltage :
- 250V
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Tin
- Height :
- 8.2mm
- Contact Style :
- Straight
- Series :
- Economy Power
- Contact Length - Mating :
- 0.303 7.70mm
- Length :
- 27.65806mm
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Friction Lock
- Style :
- Board to Cable/Wire
- Max Operating Temperature :
- 105°C
- Pitch :
- 3.9624mm
- Number of Rows :
- 1
- Contact Length - Post :
- 0.146 3.70mm
- Color :
- Red
- Length - Tail :
- 3.7mm
- Contact Shape :
- Square
- Contact Material :
- Brass
- Operating Temperature :
- -25°C~105°C
- Connector Type :
- Header
- Current Rating :
- 7.5A
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Mating :
- 800 nm
- Datasheets
- 4-1123723-7
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 7-Position Board to Cable/Wire 0.118 3.00mm Height
4-1123723-7 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Economy Power Series.You should use it when it's below 105°C.A minimum temperature of -25°C is required for the operation of this device.A possible application for the device is General Purpose, Industrial, Lighting.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -25°C~105°C Operating Temperature.
4-1123723-7 Features
Economy Power series
4-1123723-7 Applications
There are a lot of TE Connectivity AMP Connectors
4-1123723-7 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
