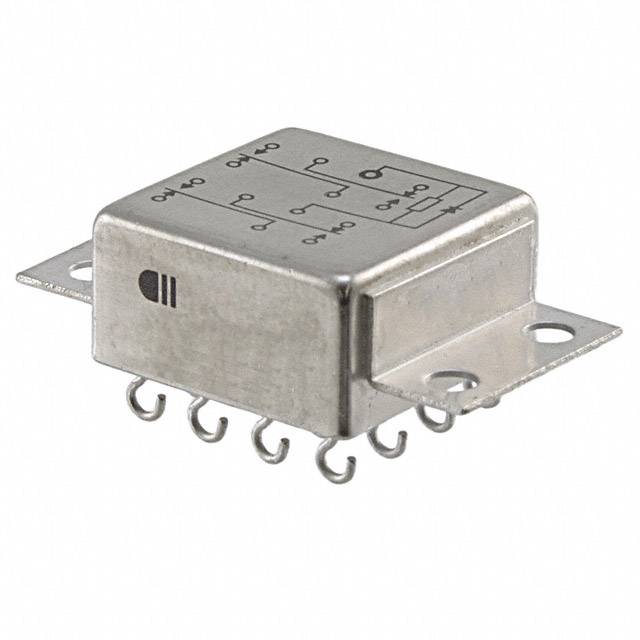

3SBH1230A2
Or copy the link below:
- Mfr.Part #
- 3SBH1230A2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS 4PDT 2A 26.5VDC
- Stock
- 32,578
- In Stock ：
- 32,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Operate Time :
- 4ms
- Operating Temperature :
- -65°C~125°C
- Must Release Voltage :
- 1.5VDC
- Published :
- 2012
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Coil/Input Supply Type :
- DC
- Release Time :
- 6ms
- Series :
- Military, MIL-R-39016/53, 3SBH, CII
- Relay Type :
- GENERAL PURPOSE
- Contact/Output Supply Type :
- AC/DC
- Coil Type :
- Non Latching
- Sealing :
- Hermetically Sealed
- Termination Style :
- Solder Hook
- Factory Lead Time :
- 20 Weeks
- Coil Current :
- 36.8mA
- Seal Rating :
- Sealed - Hermetically
- Switching Voltage :
- 28VDC - Nom
- Contact Form :
- 4PDT (4 Form C)
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Mounting Feature :
- Panel Mount
- Coil Voltage :
- 26.5VDC
- Relay Action :
- Momentary
- Mounting Type :
- Chassis Mount
- Packaging :
- Bulk
- Coil Resistance :
- 720Ohm
- Contact Rating (Current) :
- 2A
- Coil Power :
- 975mW
- Must Operate Voltage :
- 13.5VDC
- Pbfree Code :
- No
- RoHS Status :
- Non-RoHS Compliant
- Datasheets
- 3SBH1230A2
3SBH1230A2 datasheet pdf and Signal Relays, Up to 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
