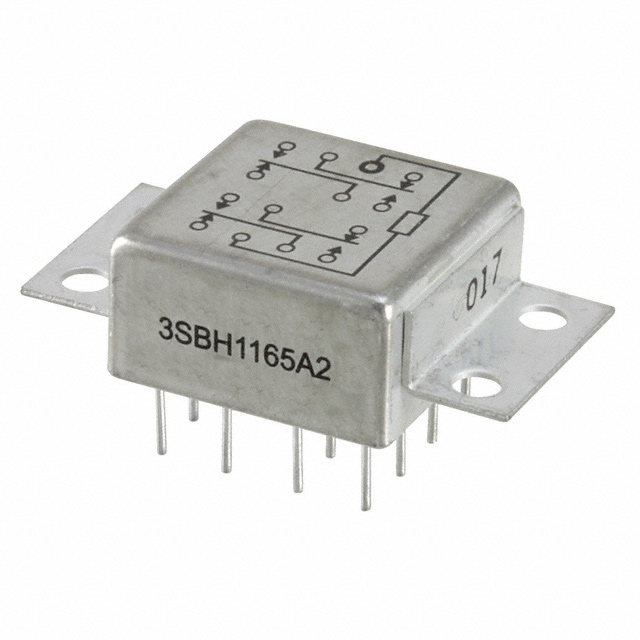

3SBH1165A2

Share

Or copy the link below:

Mfr.Part #
3SBH1165A2
Manufacturer
TE Connectivity Aerospace Defense and Marine
Package / Case
Datasheet
Download
Description
RELAY GEN PURPOS 4PDT 2A 26.5VDC
Stock
8,500
In Stock :
8,500

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Aerospace Defense and Marine
Product Category :
Signal Relays, Up to 2 Amps
Height :
8.1mm
Switching Voltage :
28VDC - Nom
Contact Current(AC)-Max :
2A
Must Operate Voltage :
13.5VDC
RoHS Status :
Non-RoHS Compliant
Must Release Voltage :
1.5VDC
Power Consumption :
975mW
Current Rating :
2A
Factory Lead Time :
20 Weeks
Coil Voltage (DC) :
26.5V
Lead Free :
Contains Lead
Operating Temperature :
-65°C~125°C
Contact Form :
4PDT (4 Form C)
Coil Voltage :
26.5VDC
ECCN Code :
EAR99
Contact/Output Supply Type :
AC/DC
Termination :
PC Pins
Depth :
15.5mm
Coil Power :
975mW
Max Current Rating :
2A
Published :
2011
Pbfree Code :
No
Series :
Military, MIL-R-39016/14, 3SBH, CII
Mount :
Chassis Mount
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Termination Style :
PC Pin
Coil/Input Supply Type :
DC
Throw Configuration :
4PDT
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
ELV :
Non-Compliant
Operate Time :
4ms
Seal Rating :
Sealed - Hermetically
Contact Current(DC)-Max :
2A
Coil Current :
36.8mA
Relay Type :
GENERAL PURPOSE
Length :
26.9mm
Packaging :
Bulk
Coil Resistance :
720Ohm
Sealing :
Hermetically Sealed
Coil Type :
Non Latching
Relay Action :
Momentary
Mounting Type :
Chassis Mount
Number of Pins :
14
Datasheets
3SBH1165A2
Introducing Signal Relays, Up to 2 Amps TE Connectivity Aerospace Defense and Marine 3SBH1165A2 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Chassis Mount, Number of Pins:14, 3SBH1165A2 pinout, 3SBH1165A2 datasheet PDF, 3SBH1165A2 amp .Beyond Signal Relays, Up to 2 Amps TE Connectivity Aerospace Defense and Marine 3SBH1165A2 ,we also offer TX2-L2-5V, HY1-24V, TXS2SA-12V, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity Aerospace Defense and Marine 3SBH1165A2
