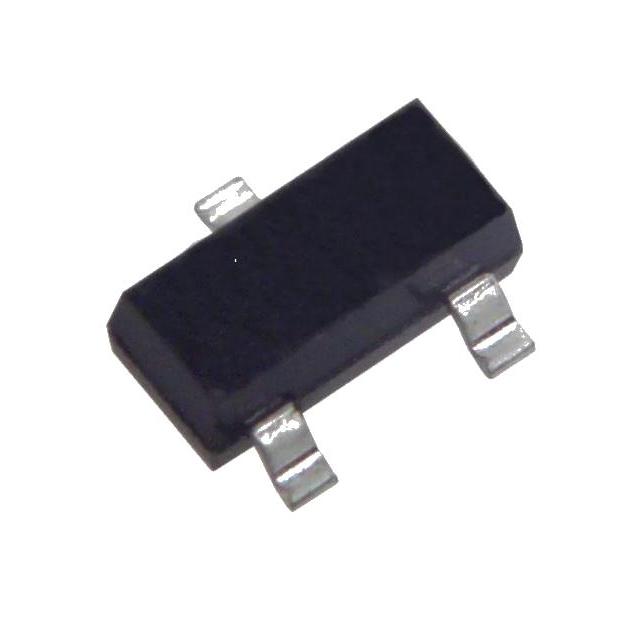

3LN01S-TL-E

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Single

Height :

750μm

Pbfree Code :

yes

Lead Free :

Lead Free

Mounting Type :

Surface Mount

RoHS Status :

RoHS Compliant

Operating Temperature :

150°C TJ

Continuous Drain Current (ID) :

150mA

Drive Voltage (Max Rds On,Min Rds On) :

1.5V 4V

Power Dissipation-Max :

150mW Ta

Rise Time :

65ns

Package / Case :

TO-236-3, SC-59, SOT-23-3

Power Dissipation :

150mW

Fall Time (Typ) :

120 ns

Gate to Source Voltage (Vgs) :

10V

Input Capacitance (Ciss) (Max) @ Vds :

7pF @ 10V

Width :

800μm

Radiation Hardening :

No

ECCN Code :

EAR99

Drain to Source Voltage (Vdss) :

30V

Published :

2006

Current - Continuous Drain (Id) @ 25°C :

150mA Ta

Drain Current-Max (Abs) (ID) :

0.15A

Mount :

Surface Mount

JESD-609 Code :

e6

Turn-Off Delay Time :

155 ns

Turn On Delay Time :

19 ns

Rds On (Max) @ Id, Vgs :

3.7 Ω @ 80mA, 4V

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

1.6mm

Element Configuration :

Single

Number of Pins :

3

Contact Plating :

Tin

FET Type :

N-Channel

Vgs (Max) :

±10V

Gate Charge (Qg) (Max) @ Vgs :

1.58nC @ 10V

Pin Count :

3
