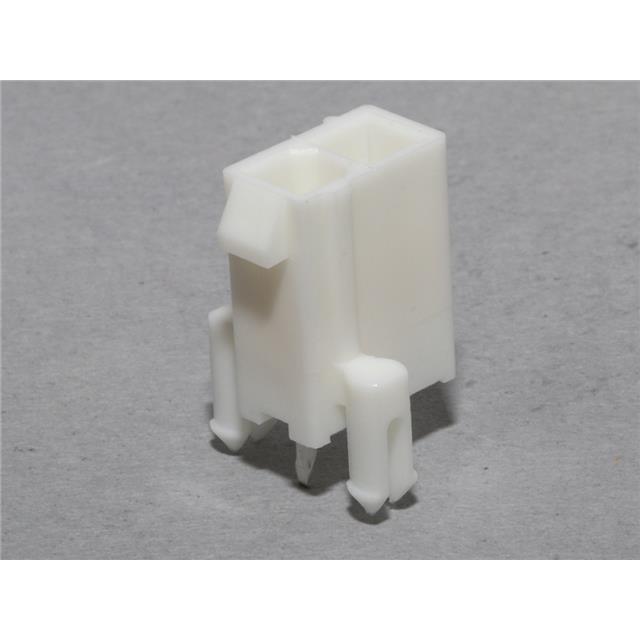

39-28-9028

Manufacturer :

Molex

Product Category :

Headers, Male Pins

ECCN Code :

EAR99

Operating Temperature Max Deg. C :

105C

Option :

GENERAL PURPOSE

Row Spacing - Mating :

0.165 (4.20mm)

Voltage Rating Max :

600V

Insulation Color :

Natural

Length - Termination :

0.14 inch

UL Flammability Code :

94V-0

Housing Color :

Natural

Insulation Resistance :

1000000000Ohm

Contact Gender :

Male

Board Mounting Option :

SPLIT BOARD LOCK

Style :

Board to Cable/Wire

Number of Ports :

1(Port)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Shape :

Square

Body Length or Diameter :

0.488 inch

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Contact Type :

Male Pin

Contact Finish - Post :

Tin

Body/Shell Style :

Receptacle

Connector Type :

RECTANGULAR POWER CONNECTOR

DIN Conformance :

No

Published :

2010

Termination Method :

Solder

Pitch (mm) :

4.2(mm)

Number of Terminals :

2

Filter Feature :

No

Pitch - Mating :

--

Operating Temperature :

--

Plating Thickness :

30u inch

Number of Conductors :

ONE

Overall Contact Length :

--

Features :

Board Lock

Ingress Protection :

--

Mating Contact Row Spacing :

0.165 inch

Reference Standard :

UL, CSA

Number of Positions :

2

Total Number of Contacts :

2

IEC Conformance :

No

Operating Temperature Min Deg. C :

-40C

Shrouding :

Shrouded - 4 Wall

Current Rating :

--

Mounting Style :

Straight

Series :

Mini-Fit Jr 5566

JESD-609 Code :

e3

Mounting Type :

BOARD

HTS Code :

8536.69.40.30

Operating Temperature (Max) :

105°C

Additional Feature :

Mini-Fit Jr.

Reliability :

COMMERCIAL

Mounting Option 1 :

POLARIZED LCK

Fastening Type :

Locking Ramp

Empty Shell :

No

Contact Resistance :

10MOhm

Mounting Option 2 :

Plastic

Rated Current (Signal) :

9A

Number Of PCB Rows :

2

Operating Temp Range :

-40C to 105C

Number of Contacts :

2(POS)

Reach Compliance Code :

Compliant

Body Orientation :

Straight

Contact Pattern :

RECTANGULAR

Number of Rows :

2

Current Rating (Max) :

9/Contact(A)

Mated Stacking Heights :

--

Contact Length - Post :

0.138 (3.50mm)

Withdrawl Force-Min :

3.1136 N

PCB Contact Row Spacing :

5.5118 mm

Contact Material :

Brass

Durability :

30 Cycles

Contact Finish Thickness - Post :

100.0µin (2.54µm)

Packaging :

Tray

Insulation Material :

Nylon

Housing Material :

Nylon

Number of Contact Rows :

2

Type :

Power

Product Height (mm) :

12.8(mm)

Contact Length - Mating :

--

PCB Contact Pattern :

RECTANGULAR

Gender :

HDR

Polarization Key :

HOUSING SIDE

Applications :

General Purpose, Industrial, Telecommunications

Terminal Pitch :

4.191mm

Contact Finish - Mating :

GOLD (30) OVER NICKEL

Contact Style :

SQ PIN-SKT

Dielectric Withstanding Voltage :

1500VAC V

MIL Conformance :

No

Contact Resistance Max :

10 MOhm

RoHS Status :

RoHS Compliant

Shell Material :

POLYAMIDE66

Contact Finish Termination :

Matte Tin (Sn) - with Nickel (Ni) barrier

Number of Positions Loaded :

All

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Pbfree Code :

icon-pbfree yes

Mating Contact Pitch :

0.165 inch

Termination :

Solder

Contact Plating :

Gold Over Nickel

Voltage Rating :

--

Insulation Height :

0.504 (12.80mm)

Product Diameter (mm) :

Not Required(mm)

Operating Temperature (Min) :

-40°C

Body Depth :

0.5 inch

Termination Type :

Solder

Insertion Force-Max :

6.672 N
