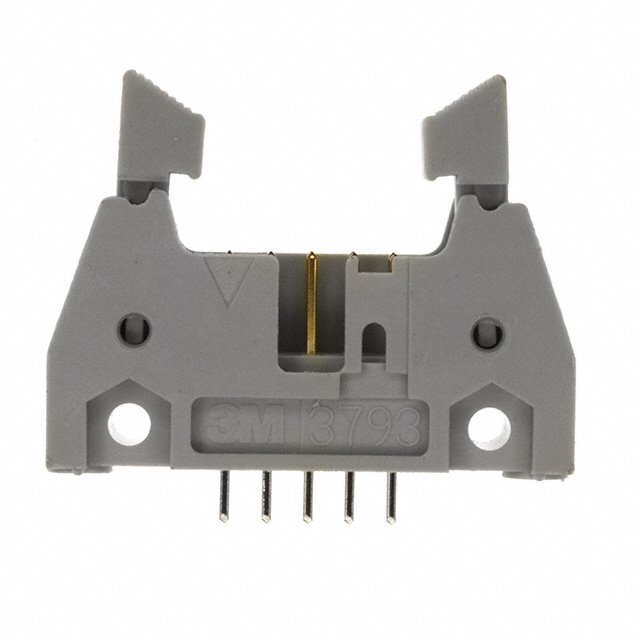

3793-6502UG
Or copy the link below:
- Mfr.Part #
- 3793-6502UG
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2.54MM
- Stock
- 3,559
- In Stock ：
- 3,559
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Lead Pitch :
- 2.54mm
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Connector Type :
- Header
- Number of Rows :
- 2
- Contact Type :
- Male Pin
- Length :
- 32.1mm
- Contact Length - Mating :
- 0.240 6.10mm
- Current Rating (Amps) :
- 1A
- Termination :
- Solder
- Housing Material :
- Plastic
- Insulation Color :
- Black
- Overall Contact Length :
- 0.652 16.56mm
- Contact Shape :
- Square
- Feature :
- Keying Slot, Mounting Flange
- Style :
- Board to Board or Cable
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Pitch :
- 2.54mm
- Width :
- 8.3mm
- Number of Positions Loaded :
- All
- Weight :
- 474.004027g
- Mount :
- Through Hole
- Contact Plating :
- Gold
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Contact Material :
- COPPER ALLOY
- Published :
- 2003
- RoHS Status :
- Non-RoHS Compliant
- Housing Color :
- Grey
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -55°C~105°C
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions :
- 10
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.680 17.27mm
- Contact Length - Post :
- 0.112 2.84mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Material Flammability Rating :
- UL94 V-0
- Color :
- Black
- Series :
- 3000
- Contact Finish - Post :
- Tin-Lead
- Height :
- 17.3mm
- Datasheets
- 3793-6502UG
3000 Series 2-Row Header Solder Copper Alloy Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Polyester, Glass Filled 10-Position Board to Board or Cable 0.680 17.27mm Height
3793-6502UG Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 3000 Series.In many ways, its Keying Slot, Mounting Flange feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~105°C Operating Temperature.
