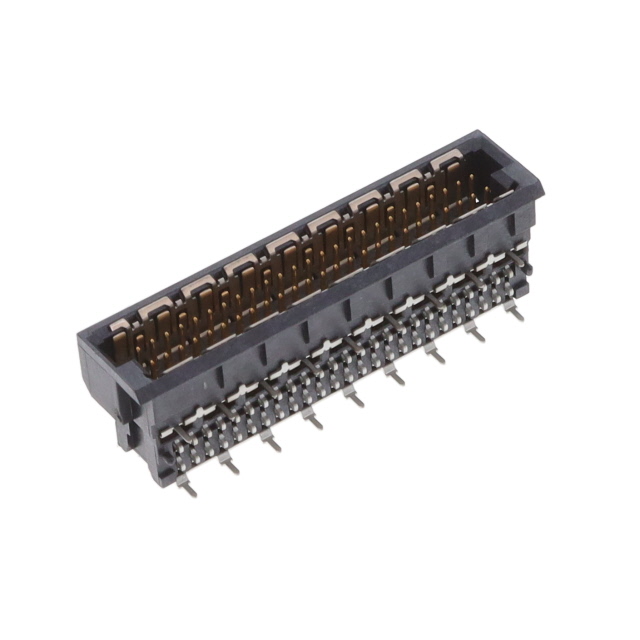

374722

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

PCB Contact Row Spacing :

1.4986 mm

Subcategory :

Headers and Edge Type Connectors

HTS Code :

8536.69.40.40

Mounting Style :

RIGHT ANGLE

Mounting Type :

BOARD

PCB Contact Pattern :

RECTANGULAR

Durability :

500 Cycles

Termination Type :

SOLDER AND SURFACE MOUNT

Reach Compliance Code :

Compliant

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Option :

GENERAL PURPOSE

MIL Conformance :

No

Body/Shell Style :

Receptacle

Total Number of Contacts :

50

Contact Pattern :

RECTANGULAR

Additional Feature :

RoHS Compliant

Mating Contact Row Spacing :

0.059 inch

Terminal Pitch :

1 mm

Number Of PCB Rows :

2

Contact Style :

SQ PIN-SKT

Mounting Option 1 :

LOCKING

JESD-609 Code :

e3

Body Breadth :

0.266 inch

DIN Conformance :

No

Manufacturer :

ERNI

Filter Feature :

No

Reference Standard :

UL

ECCN Code :

EAR99

Mating Contact Pitch :

0.039 inch

Contact Gender :

Male

Connector Type :

BOARD CONNECTOR

Board Mounting Option :

LOCATING POSTS

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Contact Finish Termination :

Tin (Sn)

Body Depth :

0.358 inch

Mixed Contacts :

No
