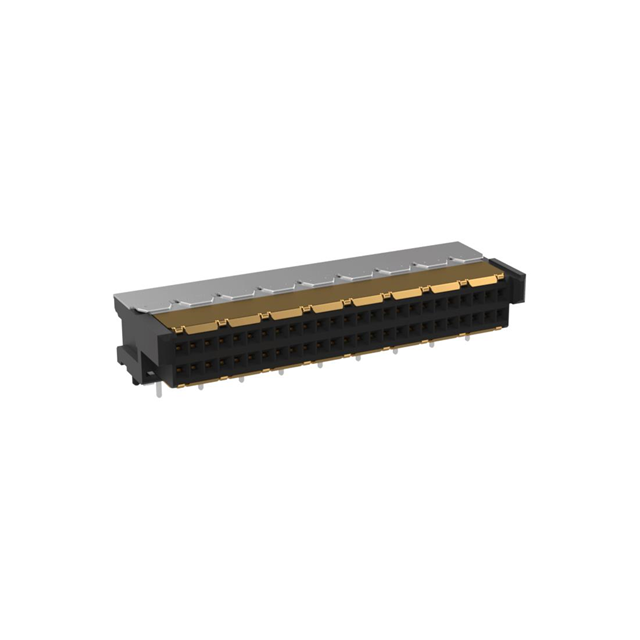

374720

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Board Mounting Option :

LOCATING POSTS

Reliability :

COMMERCIAL

Terminal Pitch :

1 mm

Packaging :

Tape and Reel

Type :

Wire to Board

Filter Feature :

No

Number of Contact Rows :

2

Termination Type :

SOLDER AND SURFACE MOUNT

Body Depth :

0.382 inch

Termination Method :

Solder

Additional Feature :

RoHS Compliant

Mounting Option 1 :

LOCKING

Contact Plating :

Gold

Product Length (mm) :

27.4(mm)

Mounting Type :

BOARD

Body/Shell Style :

Receptacle

Mating Contact Pitch :

0.039 inch

Number of Contacts :

50(POS)

Housing Color :

Black

Gender :

F

Manufacturer :

ERNI

Option :

GENERAL PURPOSE

Product Depth (mm) :

9.7(mm)

Contact Style :

SQ PIN-SKT

Connector Type :

BOARD CONNECTOR

PCB Contact Row Spacing :

1.4986 mm

Total Number of Contacts :

50

Product Height (mm) :

5.1(mm)

Contact Gender :

FEMALE

Body Orientation :

RIGHT ANGLE

Pitch (mm) :

1(mm)

Contact Material :

NOT SPECIFIED

Contact Pattern :

RECTANGULAR

Body Breadth :

0.201 inch

Subcategory :

Headers and Edge Type Connectors

Durability :

500 Cycles

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Number Of PCB Rows :

2

Operating Temp Range :

-55C to 125C

Mixed Contacts :

No

MIL Conformance :

No

Reference Standard :

UL

Mating Contact Row Spacing :

0.059 inch

Reach Compliance Code :

Compliant

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Mounting Style :

RIGHT ANGLE
