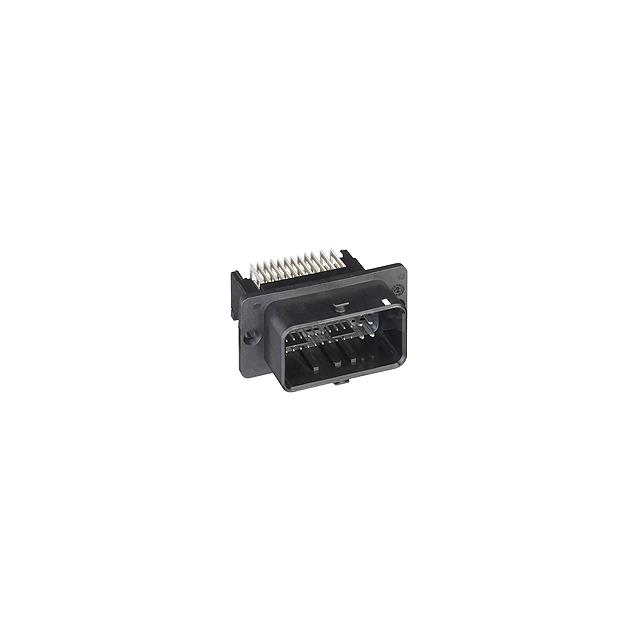

36638-0007
Or copy the link below:
- Mfr.Part #
- 36638-0007
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CMC HDR WITH SPLIT PEG T3/BR/36
- Stock
- 21,686
- In Stock ：
- 21,686
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Unclassified
- Mounting Type :
- BOARD
- Max Operating Temperature :
- 100 °C
- Mounting Style :
- RIGHT ANGLE
- Reach Compliance Code :
- Unknown
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Number Of PCB Rows :
- 3
- Additional Feature :
- IP6K7, IP6K8, IP6K9K
- Contact Gender :
- Male
- Application :
- Power
- Subcategory :
- Automotive Connectors
- Product Status :
- Active
- Contact Plating :
- Tin
- Product :
- Headers
- Rated Current (Signal) :
- 2.5 A
- HTS Code :
- 8536.90.40.00
- RoHS :
- Compliant
- Termination Type :
- Solder
- Board Mounting Option :
- PEG
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Current Rating :
- 8 A
- Country of Origin :
- In
- Connector Type :
- BOARD CONNECTOR
- Material :
- Brass
- Packaging :
- Carton
- PCB Contact Pattern :
- RECTANGULAR
- Plating :
- Tin
- Mating Information :
- 64320-2319, 64320-4319
- Insulator Color :
- Black
- Number of Rows :
- 4
- Series :
- *
- Total Number of Contacts :
- 36
- Mating Contact Pitch :
- 0.098 inch
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Housing Material :
- Polyester
- Contact Resistance :
- 8 mΩ
- Option :
- GENERAL PURPOSE
- Durability :
- 20 Cycles
- Terminal Length :
- 3.58 inch
- Voltage Rating :
- 14 V
- Dielectric Withstanding Voltage :
- 1000VAC V
- Insertion Force-Max :
- 70 N
- Rated Current (Power) :
- 12 A
- Mixed Contacts :
- yes
- Glow Wire Compliant :
- Non-Compliant
- Termination Style :
- Solder
- Pbfree Code :
- yes
- Package :
- Box
- Insulation Resistance :
- 100000000 Ω
- Number of Positions :
- 48
- Maximum Operating Temperature :
- + 100 C
- Mounting Angle :
- RIGHT ANGLE
- Terminal Pitch :
- 3.5 mm
- Filter Feature :
- No
- Mating Contact Row Spacing :
- 0.165 inch
- PCB Contact Row Spacing :
- 4 mm
- Withdrawl Force-Min :
- 70 N
- Number of Circuits :
- 36
- Contact Arrangement :
- S30P6
- Min Operating Temperature :
- -40 °C
- Product Type :
- Automotive Connectors
- Color :
- Black
- Voltage Rating (DC) :
- 14 V
- Minimum Operating Temperature :
- - 40 C
- Pitch :
- 3.7 mm
- Contact Pattern :
- RECTANGULAR
- Contact Style :
- SQ PIN-SKT
- Orientation :
- RIGHT ANGLE
- Body Breadth :
- 1.121 inch
- Datasheets
- 36638-0007
36638-0007 Documents
36638-0007 datasheet pdf and Accessories product details from Molex stock available at
36638-0007 Overview
It comes in the package of a Carton. The device's mounting type is BOARD. This device belongs to the subcategory of Automotive Connectors. This electrical component is part of the * series. The additional features of IP6K7, IP6K8, IP6K9K can also be generated with this device. It operates at a minimum working temperature of -40 °C degrees Celsius to ensure reliability. The maximum operating temperature of 100 °C°C allows for reliable operation.
