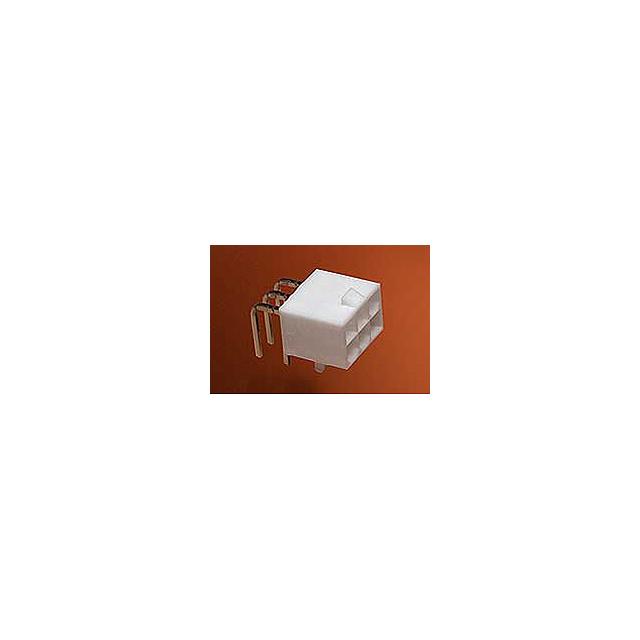

36633-0020

Manufacturer :

Molex

Product Category :

Unclassified

MIL Conformance :

No

ECCN Code :

EAR99

Mixed Contacts :

No

Body Orientation :

RIGHT ANGLE

Mounting Type :

BOARD

Operating Temp Range :

-40C to 105C

Contact Material :

Brass

Voltage Rating Max :

600V

Connector Type :

RECTANGULAR POWER CONNECTOR

Product Status :

Active

DIN Conformance :

No

Packaging :

Tray

Product Length (mm) :

10.8(mm)

Operating Temperature Max Deg. C :

105C

IEC Conformance :

No

Type :

Power

Series :

*

Product Depth (mm) :

19.4(mm)

Manufacturer :

Molex

Operating Temperature Min Deg. C :

-40C

Product Diameter (mm) :

Not Required(mm)

Total Number of Contacts :

4

Empty Shell :

No

Option :

GENERAL PURPOSE

Housing Material :

Nylon 4/6

Termination Method :

Solder

Package :

Box

HTS Code :

8536.69.40.30

Number of Ports :

1(Port)

Current Rating (Max) :

13/Contact(A)

Contact Gender :

Male

Filter Feature :

No

Number of Contacts :

4(POS)

Gender :

HDR

Termination Type :

Solder

Mounting Style :

Through Hole

Number of Terminals :

4

Pitch (mm) :

4.2(mm)

Reach Compliance Code :

Compliant

Product Height (mm) :

10(mm)
