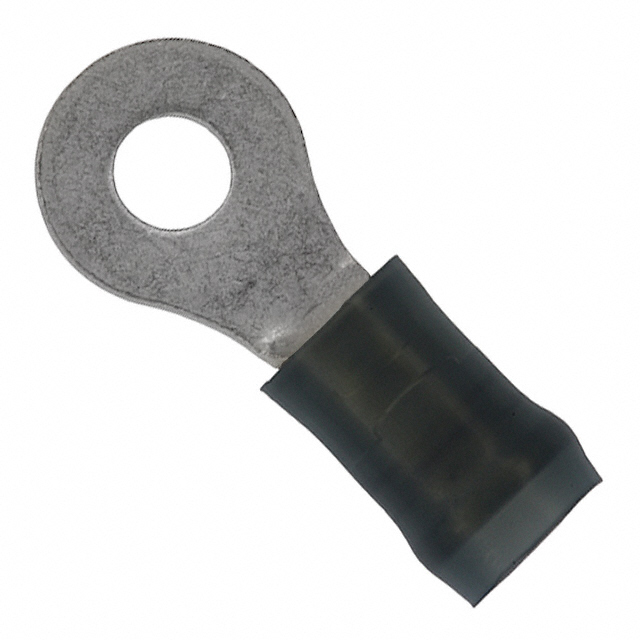

36158
Or copy the link below:
- Mfr.Part #
- 36158
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #6 CRIMP
- Stock
- 27,002
- In Stock ：
- 27,002
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Length :
- 21.8186mm
- Orientation :
- Straight
- Wire/Cable Diameter :
- 4.318 mm
- Material Thickness :
- 790μm
- Contact Plating :
- Tin
- Voltage - Rated AC :
- 300V
- Width - Outer Edges :
- 0.343 8.71mm
- ELV :
- Compliant
- Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- Feature :
- Serrated Termination
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- PIDG
- Insulated Wire Support :
- yes
- Mount :
- Stud
- Wire Gauge (Max) :
- 16 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Tongue Thickness :
- 790μm
- Contact Material :
- Copper
- REACH SVHC :
- Unknown
- Gender :
- FEMALE
- Lead Free :
- Lead Free
- Insulation Diameter :
- 0.105 ~ 0.170 (2.67mm ~ 4.32mm)
- Stud Size :
- M3.5
- Depth :
- 8.71mm
- Wire Cross Section :
- 2 mm2
- Voltage - Rated :
- 300V
- Number of Holes :
- 1
- Heavy Duty :
- No
- Plating Thickness :
- 2.54μm
- Factory Lead Time :
- 4 Weeks
- HTS Code :
- 8536.90.40.00
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Published :
- 2004
- Wire Gauge :
- 14-16 AWG
- Stud/Tab Size :
- 6 Stud
- Thickness :
- 0.031 0.79mm
- Length - Overall :
- 0.859 21.82mm
- Insulation :
- Insulated
- Terminal Type :
- Circular
- Terminal and Terminal Block Type :
- RING TERMINAL
- Material - Insulation :
- Polyamide (PA), Nylon
- Color :
- Blue
- Stud Diameter :
- 3.68 mm
- Wire Gauge (Min) :
- 14 AWG
- Datasheets
- 36158
