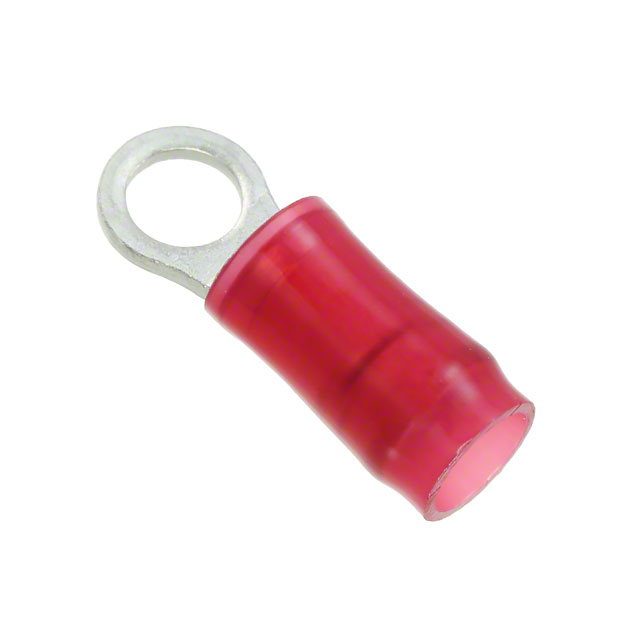

36150
Or copy the link below:
- Mfr.Part #
- 36150
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #6 CRIMP
- Stock
- 946
- In Stock ：
- 946
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Material - Insulation :
- Polyamide (PA), Nylon
- Wire/Cable Gauge :
- 16 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Copper
- Wire Gauge (Max) :
- 16 AWG
- Packaging :
- Bulk
- Feature :
- Serrated Termination
- Heavy Duty :
- No
- Termination :
- Crimp
- Width - Outer Edges :
- 0.218 5.54mm
- Gender :
- FEMALE
- Length - Overall :
- 0.672 17.07mm
- Plating Thickness :
- 2.54μm
- Voltage - Rated AC :
- 300V
- Length :
- 17.07mm
- Mount :
- Stud
- Insulation Diameter :
- 0.105 ~ 0.140 (2.67mm ~ 3.56mm)
- Stud Size :
- M3.5
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Color :
- Red
- Stud Diameter :
- 3.68 mm
- Wire Gauge :
- 16-22 AWG
- Factory Lead Time :
- 4 Weeks
- Orientation :
- Straight
- Number of Holes :
- 1
- Contact Plating :
- Tin
- Mounting Type :
- Free Hanging (In-Line)
- Depth :
- 5.54mm
- Tongue Thickness :
- 840μm
- Insulation :
- Insulated
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire/Cable Diameter :
- 3.56 mm
- Material Thickness :
- 840μm
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 22 AWG
- REACH SVHC :
- Unknown
- Terminal Type :
- Circular
- Series :
- PIDG
- Published :
- 1997
- Insulated Wire Support :
- yes
- Stud/Tab Size :
- 6 Stud
- HTS Code :
- 8536.90.40.00
- Thickness :
- 0.031 0.79mm
- Diameter - Inside :
- 3.68 mm
- Datasheets
- 36150
36150 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
