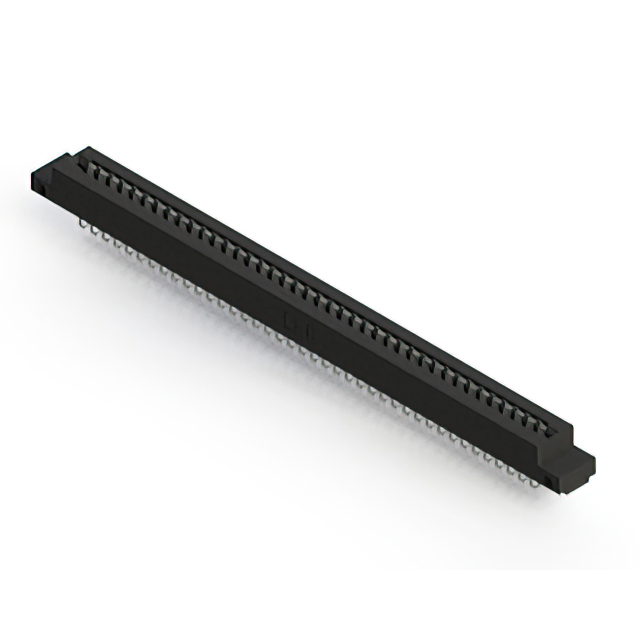

357-080-459-212
Or copy the link below:
- Mfr.Part #
- 357-080-459-212
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.156
- Stock
- 30,076
- In Stock ：
- 30,076
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Contact Finish Thickness :
- -
- Read Out :
- Dual
- Color :
- Black
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 2 Row
- Contact Finish :
- Tin
- Mounting Style :
- Panel
- Board Thickness :
- 1.57 mm
- Maximum Operating Temperature :
- + 105 C
- Material - Insulation :
- Polyester Thermoplastic
- Product Status :
- Active
- Mounting Type :
- Through Hole, Right Angle
- Contact Plating :
- Gold
- Card Type :
- Non Specified - Dual Edge
- Operating Temperature :
- -40°C ~ 105°C
- Series :
- 357
- Package :
- Bulk
- Mounting Angle :
- RIGHT ANGLE
- Termination Style :
- Solder Pin
- Features :
- -
- Termination :
- Solder
- Housing Material :
- Thermoplastic Polyester
- Insulation Resistance :
- 5000 MOhms
- Minimum Operating Temperature :
- - 40 C
- RoHS :
- Details
- Number of Positions :
- 80 Position
- Gender :
- FEMALE
- Current Rating :
- 5 A
- Base Product Number :
- 357-080
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Pitch :
- 3.96 mm
- Number of Positions/Bay/Row :
- 40
- Contact Type :
- Semi Bellows
- Flange Feature :
- Flush Mount, Side Opening, Unthreaded, 0.128 (3.25mm) Dia
- Datasheets
- 357-080-459-212
