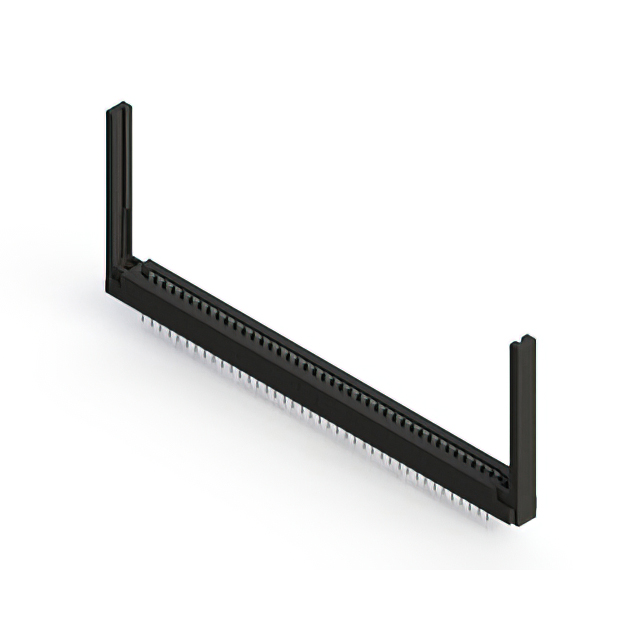

357-080-424-268
Or copy the link below:
- Mfr.Part #
- 357-080-424-268
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.156
- Stock
- 3,838
- In Stock ：
- 3,838
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Number of Positions/Bay/Row :
- 40
- Operating Temperature :
- -40°C ~ 105°C
- Read Out :
- Dual
- Contact Finish :
- Tin
- Gender :
- FEMALE
- Number of Positions :
- 80 Position
- Minimum Operating Temperature :
- - 40 C
- Insulation Resistance :
- 5000 MOhms
- Product Status :
- Active
- Current Rating :
- 5 A
- Series :
- 357
- Flange Feature :
- Flush Mount, Top Opening, Threaded Insert, 4-40
- Contact Type :
- Semi Bellows
- Features :
- Card Guides
- Number of Rows :
- 2 Row
- RoHS :
- Details
- Base Product Number :
- 357-080
- Mounting Type :
- Through Hole
- Contact Material :
- COPPER ALLOY
- Board Thickness :
- 1.57 mm
- Mounting Angle :
- Vertical
- Maximum Operating Temperature :
- + 105 C
- Package :
- Bulk
- Contact Finish Thickness :
- -
- Housing Material :
- Thermoplastic Polyester
- Card Type :
- Non Specified - Dual Edge
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Termination :
- Solder
- Termination Style :
- Solder Pin
- Material - Insulation :
- Polyester Thermoplastic
- Pitch :
- 3.96 mm
- Color :
- Black
- Contact Plating :
- Gold
- Mounting Style :
- Panel
- Datasheets
- 357-080-424-268
