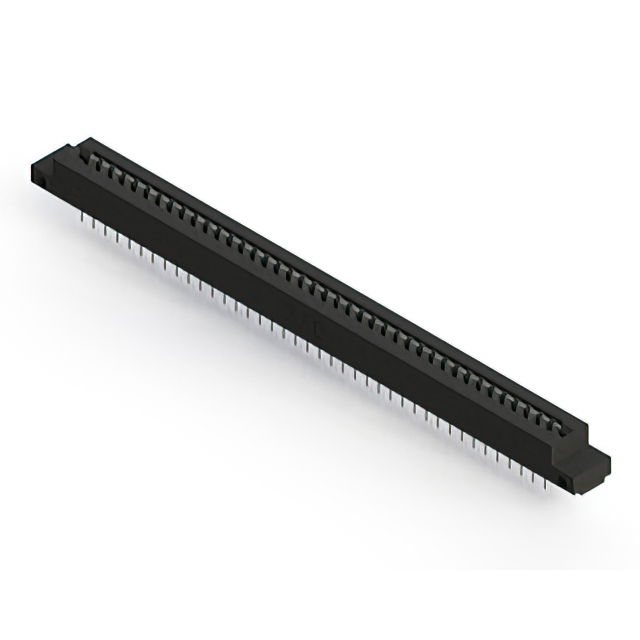

357-080-424-212
Or copy the link below:
- Mfr.Part #
- 357-080-424-212
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.156
- Stock
- 33,776
- In Stock ：
- 33,776
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Contact Material :
- COPPER ALLOY
- Read Out :
- Dual
- Material - Insulation :
- Polyester Thermoplastic
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Contact Finish :
- Tin
- Number of Rows :
- 2
- Color :
- Black
- Series :
- 357
- Contact Finish Thickness :
- -
- Number of Positions :
- 80
- Operating Temperature :
- -40°C ~ 105°C
- Card Type :
- Non Specified - Dual Edge
- Pitch :
- 0.156 (3.96mm)
- Housing Material :
- Thermoplastic Polyester
- Board Thickness :
- 1.57 mm
- Features :
- -
- Product Status :
- Active
- Contact Type :
- Semi Bellows
- Mounting Angle :
- Vertical
- Gender :
- FEMALE
- Number of Positions/Bay/Row :
- 40
- Flange Feature :
- Flush Mount, Side Opening, Unthreaded, 0.128 (3.25mm) Dia
- Mounting Style :
- Panel
- Mounting Type :
- Through Hole
- Contact Plating :
- Gold
- Termination :
- Solder
- Package :
- Bulk
- Base Product Number :
- 357-080
- Datasheets
- 357-080-424-212
Female Black 0.156 (3.96mm) Copper Alloy 2 Rows Solder Tin 80 Positions Polyester Thermoplastic
357-080-424-212 Overview
A mounting type of Through Hole is recommended.357 tells you what series the device is.
357-080-424-212 Features
357 series
357-080-424-212 Applications
There are a lot of EDAC
357-080-424-212 Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
