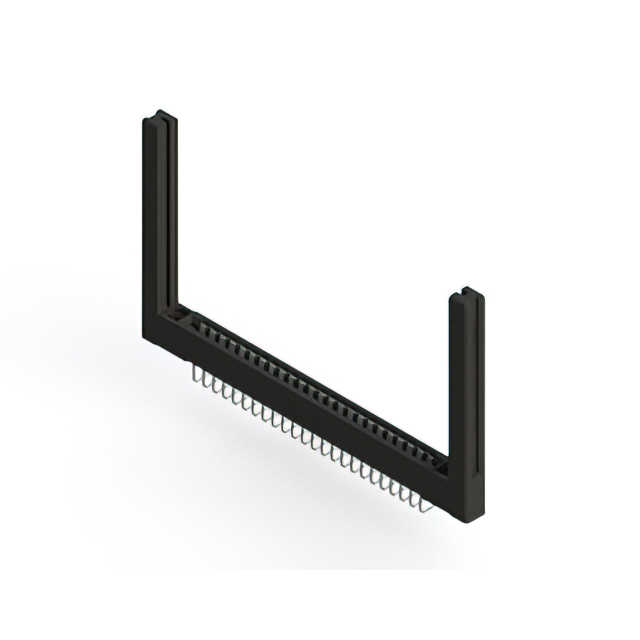

357-024-458-158
Or copy the link below:
- Mfr.Part #
- 357-024-458-158
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE SGL FML 24POS 0.156
- Stock
- 21,454
- In Stock ：
- 21,454
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Number of Positions :
- 24 Position
- Contact Finish :
- Tin
- Insulation Resistance :
- 5000 MOhms
- Flange Feature :
- Flush Mount, Top Opening, Threaded Insert, 4-40
- Housing Material :
- Thermoplastic Polyester
- Contact Type :
- Semi Bellows
- Termination :
- Solder
- Package :
- Bulk
- Contact Finish Thickness :
- -
- Features :
- Card Guides
- Product Status :
- Active
- Number of Positions/Bay/Row :
- 24
- Series :
- 357
- Operating Temperature :
- -40°C ~ 105°C
- Color :
- Black
- Termination Style :
- Solder Pin
- Maximum Operating Temperature :
- + 105 C
- Current Rating :
- 5 A
- Contact Plating :
- Gold
- Read Out :
- Single
- Board Thickness :
- 1.57 mm
- Mounting Style :
- Panel
- Mounting Type :
- Through Hole, Right Angle
- Card Type :
- Non Specified - Single Edge
- Mounting Angle :
- RIGHT ANGLE
- Material - Insulation :
- Polyester Thermoplastic
- Minimum Operating Temperature :
- - 40 C
- Pitch :
- 3.96 mm
- Base Product Number :
- 357-024
- Gender :
- FEMALE
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1 Row
- RoHS :
- Details
- Datasheets
- 357-024-458-158
357-024-458-158 datasheet pdf and Card Edge Connectors - Adapters product details from EDAC Inc. stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
