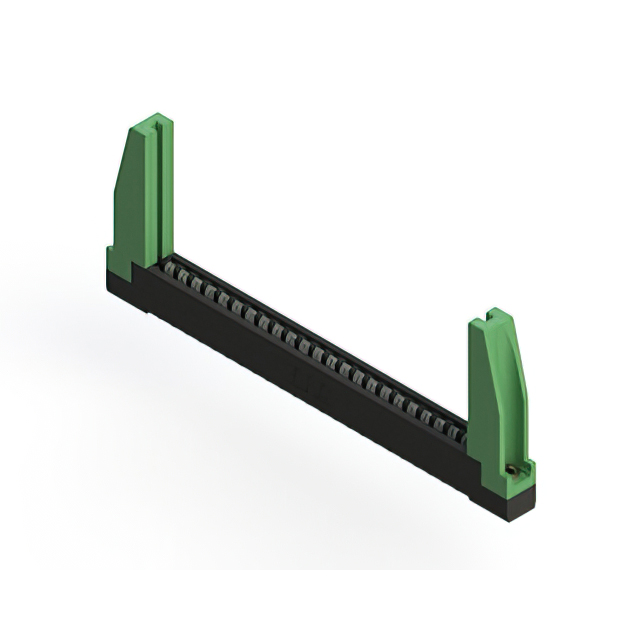

357-024-421-178
Or copy the link below:
- Mfr.Part #
- 357-024-421-178
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 48POS 0.156
- Stock
- 22,928
- In Stock ：
- 22,928
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Number of Positions :
- 24 Position
- Series :
- 357
- Contact Finish :
- Tin
- Board Thickness :
- 1.57 mm
- Product Status :
- Active
- Read Out :
- Dual
- Flange Feature :
- Flush Mount, Top Opening, Threaded Insert, 4-40
- Mounting Angle :
- Vertical
- Termination :
- Solder
- Base Product Number :
- 357-024
- Current Rating :
- 5 A
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Color :
- Black
- RoHS :
- Details
- Minimum Operating Temperature :
- - 40 C
- Operating Temperature :
- -40°C ~ 105°C
- Insulation Resistance :
- 5000 MOhms
- Material - Insulation :
- Polyester Thermoplastic
- Termination Style :
- Solder Pin
- Contact Material :
- COPPER ALLOY
- Package :
- Bulk
- Gender :
- FEMALE
- Contact Finish Thickness :
- -
- Housing Material :
- Thermoplastic Polyester
- Card Type :
- Non Specified - Dual Edge
- Pitch :
- 3.96 mm
- Number of Rows :
- 1 Row
- Mounting Type :
- Through Hole
- Maximum Operating Temperature :
- + 105 C
- Number of Positions/Bay/Row :
- 24
- Contact Plating :
- Gold
- Features :
- Card Guides
- Mounting Style :
- Panel
- Contact Type :
- Semi Bellows
- Datasheets
- 357-024-421-178
357-024-421-178 datasheet pdf and Card Edge Connectors - Adapters product details from EDAC Inc. stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
