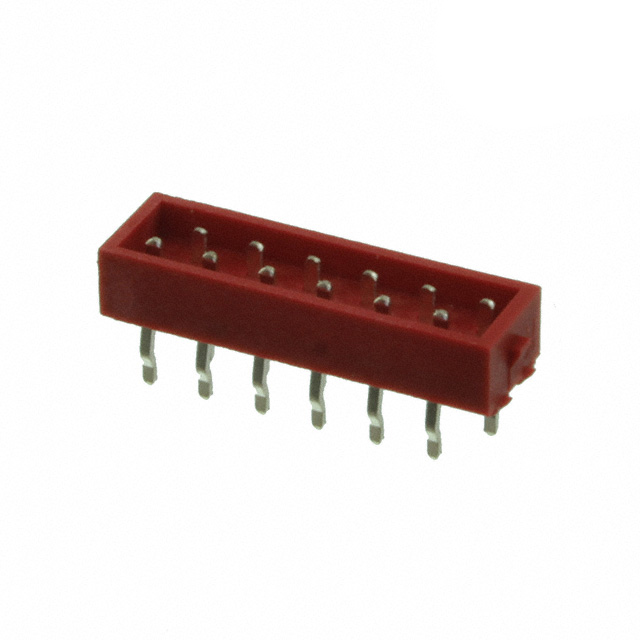

3522-12-0100-99
Or copy the link below:
- Mfr.Part #
- 3522-12-0100-99
- Manufacturer
- CnC Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 2.54MM
- Stock
- 1,590
- In Stock ：
- 1,590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CnC Tech
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 18 Weeks
- Voltage - Rated :
- 500VAC
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tube
- Contact Shape :
- RECTANGULAR
- Current Rating (Amps) :
- 1A
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Kinked Pin, Solder
- Operating Temperature :
- -40°C~105°C
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Header
- Style :
- Board to Board or Cable
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.146 3.70mm
- Contact Type :
- Male Pin
- Number of Positions :
- 12
- Contact Material :
- Brass
- Contact Finish - Mating :
- Tin
- Datasheets
- 3522-12-0100-99
2-Row Header Kinked Pin, Solder Brass Tube Through Hole Tin Polyamide (PA9T), Nylon 9T 12-Position Board to Board or Cable 0.146 3.70mm Height
3522-12-0100-99 Overview
A Header packaging is included.It's mounted Through Hole.We use a Tube case to package the product.-40°C~105°C Operating Temperature is what the device runs at.
3522-12-0100-99 Features
3522-12-0100-99 Applications
There are a lot of CNC Tech
3522-12-0100-99 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
