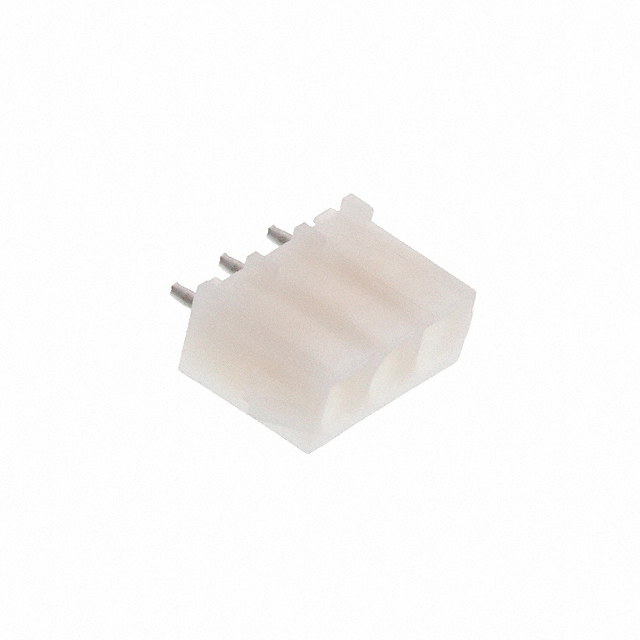

350429-4
Or copy the link below:
- Mfr.Part #
- 350429-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 6.35MM
- Stock
- 12,110
- In Stock ：
- 12,110
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-2
- Contact Material :
- COPPER ALLOY
- Insulation Color :
- Natural
- Published :
- 2005
- Contact Finish - Mating :
- Gold
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Male Pin
- DIN Conformance :
- No
- Filter Feature :
- No
- Mixed Contacts :
- No
- Plating Thickness :
- 2.54μm
- Pitch - Mating :
- 0.250 6.35mm
- Applications :
- GENERAL PURPOSE
- Min Operating Temperature :
- -40°C
- Lead Pitch :
- 6.35mm
- Connector Type :
- Header
- Length :
- 20.32mm
- Width :
- 7.62mm
- Lead Free :
- Lead Free
- Max Voltage Rating (AC) :
- 600V
- VDE Tested :
- yes
- Number of Contacts :
- 3
- Orientation :
- Vertical
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Shrouding :
- Shrouded - 4 Wall
- Height :
- 13.97mm
- Current Rating :
- 19A
- MIL Conformance :
- No
- Approval Agency :
- CSA
- Insulation Material :
- Polyamide (PA), Nylon
- IEC Conformance :
- No
- Contact Length - Post :
- 0.155 3.94mm
- Operating Supply Voltage :
- 600V
- Contact Gender :
- Male
- Circuit Application :
- Power
- Housing Material :
- Nylon
- PCB Thickness :
- 1.57mm
- Sealable :
- No
- Series :
- Universal MATE-N-LOK
- Contact Plating :
- Gold, Tin
- Contact Retention :
- Without
- Style :
- Board to Cable/Wire
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Max Voltage Rating (DC) :
- 600V
- Voltage - Rated :
- 600V
- UL Flammability Code :
- 94V-2
- Max Operating Temperature :
- 221°C
- Contact Shape :
- Circular
- Empty Shell :
- No
- Insulation Height :
- 0.550 13.97mm
- Factory Lead Time :
- 15 Weeks
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 12A
- Number of Rows :
- 1
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-2
- Packaging :
- Bulk
- Datasheets
- 350429-4
Universal MATE-N-LOK Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyamide (PA), Nylon Board to Cable/Wire 0.550 13.97mm Height
350429-4 Overview
A Header packaging is included.It's mounted Through Hole.We use a Bulk case to package the product.It's from the Universal MATE-N-LOK Series.Ideally, it should be used at temperatures below 221°C.Temperatures below -40°C are required for this device.The device could be used for General Purpose.It's mounted by Through Hole.Operating voltage is 600V.
350429-4 Features
Universal MATE-N-LOK series
350429-4 Applications
There are a lot of TE Connectivity AMP Connectors
350429-4 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
