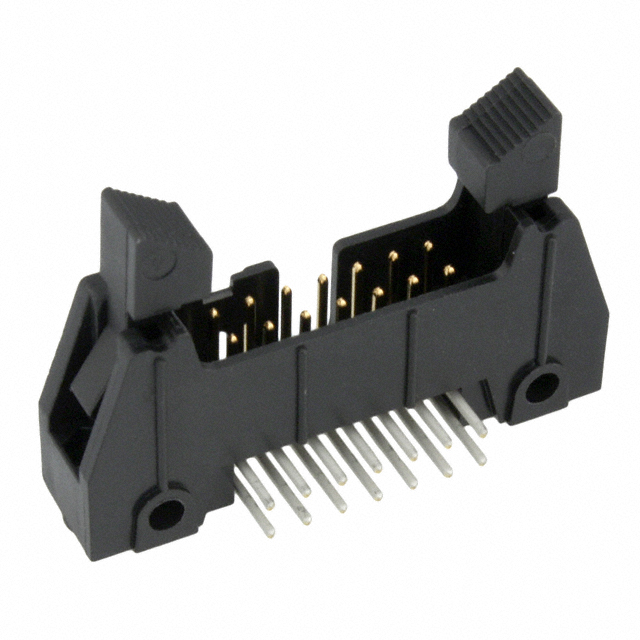

3314-5202

Manufacturer :

3M

Product Category :

Headers, Male Pins

Contact Length - Post :

0.112 2.84mm

Number of Positions Loaded :

All

Contact Material :

COPPER ALLOY

Insulation Color :

Black

Pitch :

2.54mm

Contact Type :

Male Pin

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Number of Rows :

2

Height :

8.3mm

Published :

2009

Lead Pitch :

2.54mm

Material Flammability Rating :

UL94 V-0

Row Spacing - Mating :

0.100 (2.54mm)

RoHS Status :

Non-RoHS Compliant

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Fastening Type :

Latch Lock/Eject Hooks, Short

Series :

3000

Termination :

Solder

Housing Material :

Polyester

Insulation Resistance :

1GOhm

Current Rating :

1A

Factory Lead Time :

6 Weeks

Number of Contacts :

14

Number of Positions :

14

Contact Length - Mating :

0.240 6.10mm

Color :

Grey

Pitch - Mating :

0.100 2.54mm

Packaging :

Bulk

Connector Type :

Header

Contact Finish - Post :

Tin-Lead

Contact Finish Thickness - Post :

200.0μin 5.08μm

Feature :

Keying Slot, Mounting Flange

Flammability Rating :

UL94 V-0

Housing Color :

Grey

Mounting Type :

Through Hole, Right Angle

Contact Plating :

Gold

Contact Shape :

Square

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mount :

Through Hole

Insulation Height :

0.340 8.64mm

Length :

37.2mm

Width :

17.3mm

Weight :

839.145884g

Style :

Board to Cable/Wire

Operating Temperature :

-55°C~105°C

Current Rating (Amps) :

1.75A
