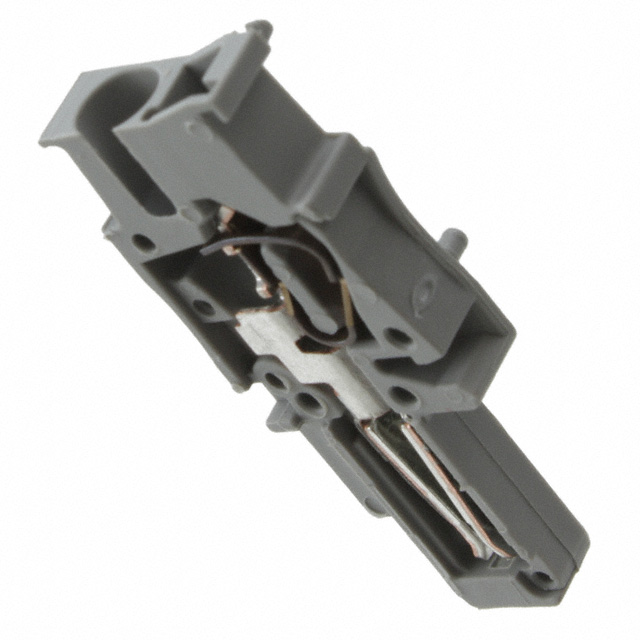

3043043

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Number of Rows :

1

Type :

Plug, Female Sockets

Height :

39mm

Current - IEC :

24A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

IDC, IDT

Pbfree Code :

yes

Approval Agency :

CB, CSA, UL, VDE

ECCN Code :

EAR99

Factory Lead Time :

7 Weeks

Safety Approval :

UL; VDE; CSA

Packaging :

Bulk

Width :

5.2mm

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide (PA), Nylon

Voltage - Rated :

500V

Wire Strip Length :

10mm

Current Rating :

24A

Wire Gauge or Range - AWG :

12-28 AWG

Plug Wire Entry :

180°

Voltage :

600V

Length :

15.8mm

Material Flammability Rating :

UL94 V-0

Current :

20A

Wire Gauge (Min) :

12 AWG

RoHS Status :

RoHS Compliant

Number of Decks :

1

Voltage - UL :

300V

Color :

Gray

HTS Code :

8536.69.40.40

Series :

CLIPLINE ST-COMBI SP

Termination Style :

Screwless - Spring Cage, Tension Clamp

Insulation Height :

1.535 39.00mm

Wire Cross Section :

4 mm2

Feature :

Interlocking (Side)

Wire/Cable Gauge :

12 AWG

Termination :

Screwless

Published :

2011

Fastening Method :

SPRING LOADED

Wire Gauge (Max) :

28 AWG

Weight :

3.169987g

Number of Levels :

1

Wire Gauge or Range - mm² :

0.08-4mm2

Mount :

Free Hanging
