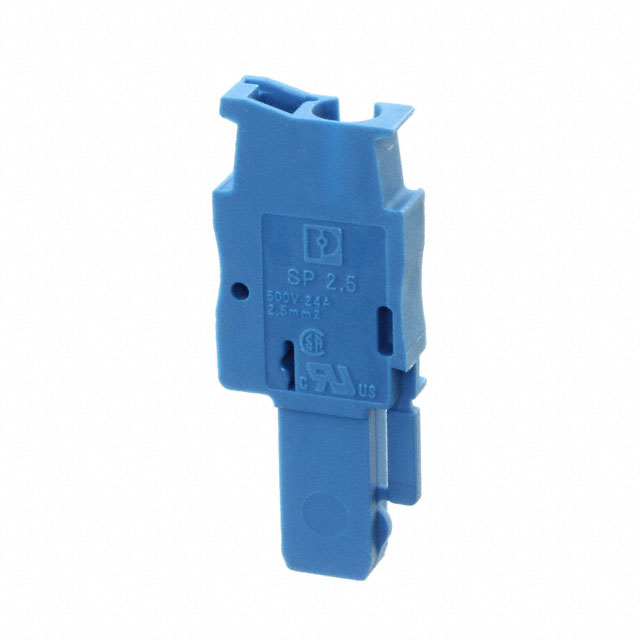

3043022

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

10mm

Current - UL :

20A

Number of Rows :

1

Voltage - UL :

300V

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide (PA), Nylon

Wire Gauge or Range - AWG :

12-28 AWG

Fastening Method :

SPRING LOADED

Insulation Height :

1.535 39.00mm

Voltage - Rated :

500V

Plug Wire Entry :

180°

Length :

15.8mm

Width :

5.2mm

Type :

Plug, Female Sockets

Wire Gauge (Max) :

28 AWG

Weight :

3.029997g

HTS Code :

8536.69.40.40

Current Rating :

24A

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: GL; LR; RS; UL; VDE

Termination Style :

Screwless - Spring Cage, Tension Clamp

RoHS Status :

RoHS Compliant

Number of Decks :

1

Number of Ways :

1

Safety Approval :

BV; CB; DNV; CSA; CUL; GOST

Current :

5A

Packaging :

Bulk

ECCN Code :

EAR99

Wire Gauge (Min) :

28 AWG

Color :

Blue

Voltage :

600V

Series :

CLIPLINE ST-COMBI SP

Material Flammability Rating :

UL94 V-0

Number of Levels :

1

Termination :

Screwless

Wire Gauge or Range - mm² :

0.08-4mm2

Feature :

Interlocking (Side)

Mount :

Free Hanging

Height :

39mm

Published :

2010

Wire Cross Section :

4 mm2

Connector Type :

IDC, IDT
