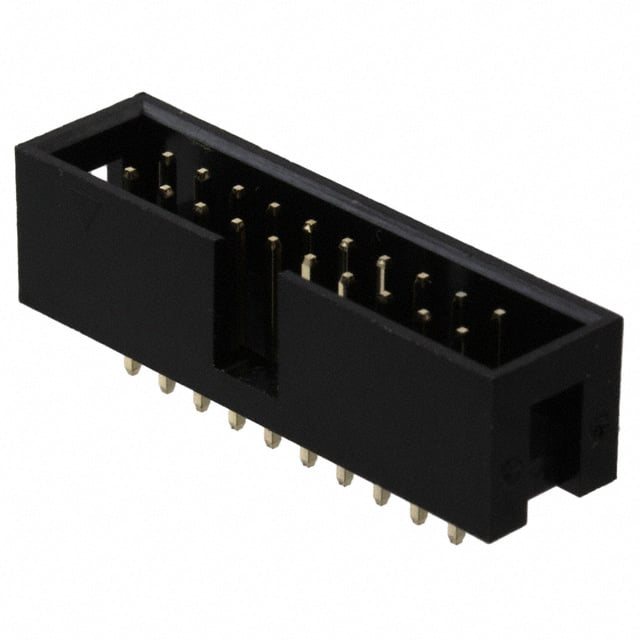

302-S201

Manufacturer :

On-Shore Technology, Inc.

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole

Pitch - Mating :

0.100 2.54mm

Body Depth :

0.358 inch

Factory Lead Time :

8 Weeks

Manufacturer Package Identifier :

302-S201

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Cable/Wire

Number of Rows :

2

Contact Material :

Brass

Number Of PCB Rows :

2

Fastening Type :

Push-Pull

Rated Current (Signal) :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Keying Slot

Height :

9.15mm

Body Length or Diameter :

1.3 inch

Number of Positions :

20

Contact Shape :

Square

Mating Contact Pitch :

0.1 inch

Mount :

Through Hole

Contact Finish Thickness - Post :

1.25μin 0.032μm

HTS Code :

8536.69.40.40

Connector Type :

Header

Current Rating :

3A

Termination :

Solder

Number of Positions Loaded :

All

Series :

302

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Insulation Resistance :

1000000000Ohm

Operating Temperature :

-40°C~105°C

Packaging :

Tray

Polarization Key :

POLARIZED HOUSING

Voltage - Rated :

250V

Insulation Color :

Black

Insulation Height :

0.358 9.10mm

Reliability :

COMMERCIAL

Insulation Material :

Polyester, Glass Filled

RoHS Status :

ROHS3 Compliant

Shrouding :

Shrouded - 4 Wall

Row Spacing - Mating :

0.100 (2.54mm)

Dielectric Withstanding Voltage :

1500VAC V

Body Breadth :

0.358 inch

Number of Conductors :

ONE

Contact Length - Post :

0.122 3.10mm

Contact Finish Thickness - Mating :

Flash

Reference Standard :

UL

Contact Finish - Mating :

Gold

Contact Type :

Male Pin

JESD-609 Code :

e4
