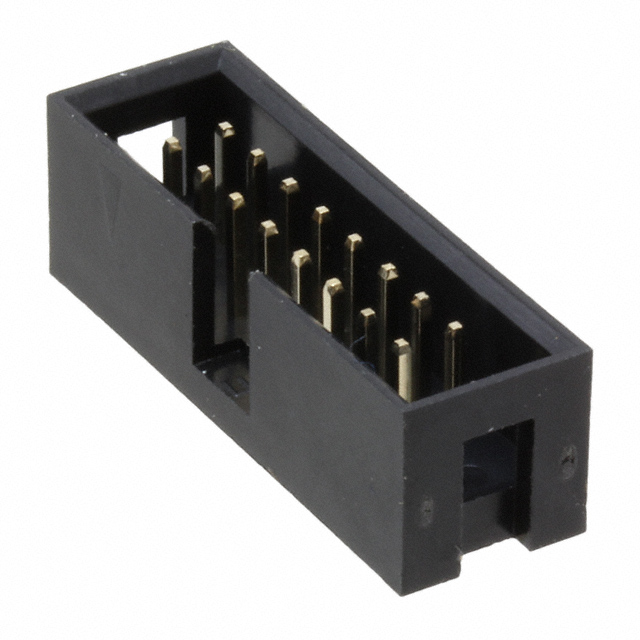

302-S161
Or copy the link below:
- Mfr.Part #
- 302-S161
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 51,021
- In Stock ：
- 51,021
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- Feature :
- Keying Slot
- Contact Type :
- Male Pin
- Series :
- 302
- Contact Material :
- Brass
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Factory Lead Time :
- 8 Weeks
- Insulation Color :
- Black
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Body Depth :
- 0.358 inch
- Number Of PCB Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- RoHS Status :
- ROHS3 Compliant
- Number of Conductors :
- ONE
- Body Length or Diameter :
- 1.1 inch
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Packaging :
- Tray
- Fastening Type :
- Push-Pull
- Number of Rows :
- 2
- PCB Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 1500VAC V
- Contact Finish Thickness - Mating :
- Flash
- Insulation Height :
- 0.358 9.10mm
- Insulation Material :
- Polyester, Glass Filled
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions :
- 16
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mount :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -40°C~105°C
- JESD-609 Code :
- e4
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 250V
- Mating Contact Pitch :
- 0.1 inch
- Reference Standard :
- UL
- Body Breadth :
- 0.358 inch
- Contact Length - Post :
- 0.122 3.10mm
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- 3A
- Termination :
- Solder
- Insulation Resistance :
- 1000000000Ohm
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 302-S161
302-S161 Documents
302 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyester, Glass Filled 16-Position Board to Cable/Wire 0.358 9.10mm Height
302-S161 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the 302 Series.It is more powerful in many ways due to its Keying Slot feature.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.
302-S161 Features
302 series
302-S161 Applications
There are a lot of On Shore Technology Inc.
302-S161 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
