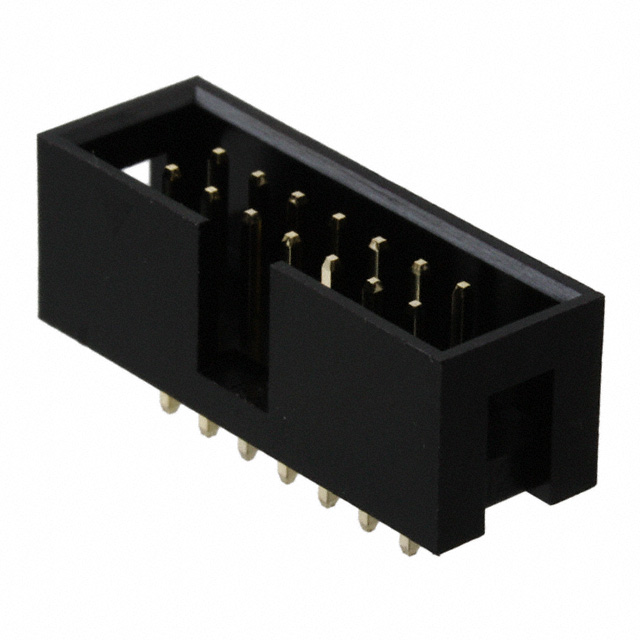

302-S141
Or copy the link below:
- Mfr.Part #
- 302-S141
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 95,045
- In Stock ：
- 95,045
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- Contact Material :
- Brass
- Packaging :
- Tray
- Rated Current (Signal) :
- 3A
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyester, Glass Filled
- Number of Positions :
- 14
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.122 3.10mm
- Termination :
- Solder
- Feature :
- Keying Slot
- Pitch - Mating :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Body Depth :
- 0.358 inch
- Number of Rows :
- 2
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Dielectric Withstanding Voltage :
- 1500VAC V
- Contact Finish Thickness - Mating :
- Flash
- Body Breadth :
- 0.358 inch
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 3A
- Contact Finish - Mating :
- Gold
- Number Of PCB Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Row Spacing - Mating :
- 0.100 (2.54mm)
- JESD-609 Code :
- e4
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.358 9.10mm
- Voltage - Rated :
- 250V
- Reliability :
- COMMERCIAL
- Fastening Type :
- Push-Pull
- Mating Contact Pitch :
- 0.1 inch
- Insulation Resistance :
- 1000000000Ohm
- Polarization Key :
- POLARIZED HOUSING
- Reference Standard :
- UL
- Mount :
- Through Hole
- Series :
- 302
- Insulation Color :
- Black
- PCB Contact Pattern :
- RECTANGULAR
- Body Length or Diameter :
- 1 inch
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 302-S141
302 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyester, Glass Filled 14-Position Board to Cable/Wire 0.358 9.10mm Height
302-S141 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the 302 Series of products.A number of features make it more powerful because of its Keying Slot feature.Through Hole mounts the part.There is no operating temperature for the device.
302-S141 Features
302 series
302-S141 Applications
There are a lot of On Shore Technology Inc.
302-S141 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
