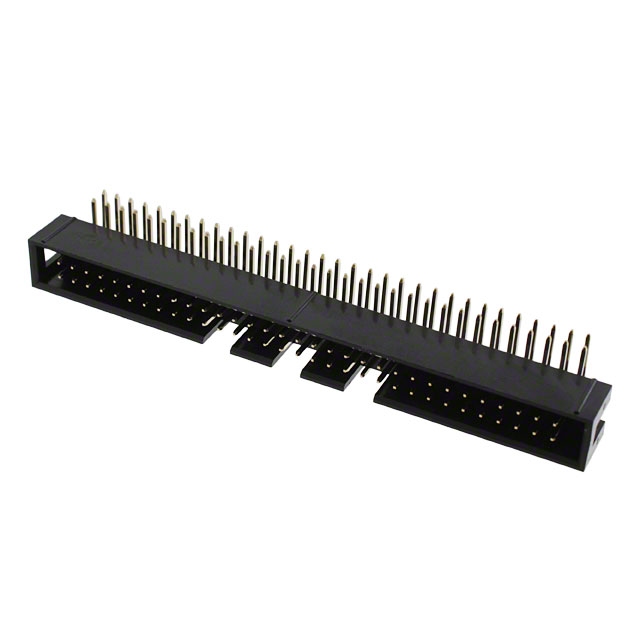

302-R641
Or copy the link below:
- Mfr.Part #
- 302-R641
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 64POS 2.54MM
- Stock
- 22,403
- In Stock ：
- 22,403
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- RoHS Status :
- ROHS3 Compliant
- Series :
- 302
- PCB Contact Pattern :
- RECTANGULAR
- Body Depth :
- 0.508 inch
- Pitch - Mating :
- 0.100 2.54mm
- Polarization Key :
- POLARIZED HOUSING
- Contact Shape :
- Square
- Insulation Color :
- Black
- Reliability :
- COMMERCIAL
- Contact Finish Thickness - Mating :
- Flash
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Voltage - Rated :
- 250V
- Dielectric Withstanding Voltage :
- 1500VAC V
- Contact Material :
- Brass
- Reference Standard :
- UL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Feature :
- Keying Slot
- Body Breadth :
- 0.358 inch
- Mating Contact Pitch :
- 0.1 inch
- Packaging :
- Tray
- Number of Rows :
- 2
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Operating Temperature :
- -40°C~105°C
- Body Length or Diameter :
- 3.5 inch
- Insulation Material :
- Polyester, Glass Filled
- Current Rating (Amps) :
- 3A
- Number of Conductors :
- ONE
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.358 9.10mm
- Insulation Resistance :
- 1000000000Ohm
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions Loaded :
- All
- Mount :
- Through Hole
- Contact Length - Post :
- 0.122 3.10mm
- Fastening Type :
- Push-Pull
- Number Of PCB Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 64
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Datasheets
- 302-R641
302 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 64-Position Board to Cable/Wire 0.358 9.10mm Height
302-R641 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the 302 Series, it belongs to the range of products of that series.A number of features make the Keying Slot feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
302-R641 Features
302 series
302-R641 Applications
There are a lot of On Shore Technology Inc.
302-R641 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
