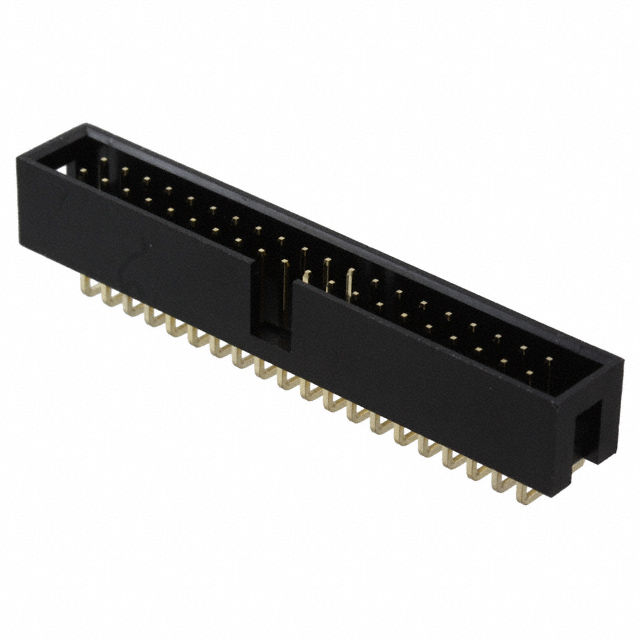

302-R401
Or copy the link below:
- Mfr.Part #
- 302-R401
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 40POS 2.54MM
- Stock
- 336
- In Stock ：
- 336
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish Thickness - Mating :
- Flash
- Operating Temperature :
- -40°C~105°C
- Reference Standard :
- UL
- Number Of PCB Rows :
- 2
- Mount :
- Through Hole
- Body Breadth :
- 0.358 inch
- Number of Positions :
- 40
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Current Rating (Amps) :
- 3A
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Mating :
- Gold
- Voltage - Rated :
- 250V
- Feature :
- Keying Slot
- Insulation Height :
- 0.358 9.10mm
- Dielectric Withstanding Voltage :
- 1500VAC V
- Insulation Resistance :
- 1000000000Ohm
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Fastening Type :
- Push-Pull
- Series :
- 302
- Number of Rows :
- 2
- Body Depth :
- 0.508 inch
- Contact Type :
- Male Pin
- Insulation Material :
- Polyester, Glass Filled
- Factory Lead Time :
- 8 Weeks
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mounting Type :
- Through Hole, Right Angle
- Number of Conductors :
- ONE
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass
- Insulation Color :
- Black
- Contact Length - Post :
- 0.122 3.10mm
- Mating Contact Pitch :
- 0.1 inch
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 302-R401
302 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 40-Position Board to Cable/Wire 0.358 9.10mm Height
302-R401 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the 302 Series.In many ways, its Keying Slot feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.
302-R401 Features
302 series
302-R401 Applications
There are a lot of On Shore Technology Inc.
302-R401 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
