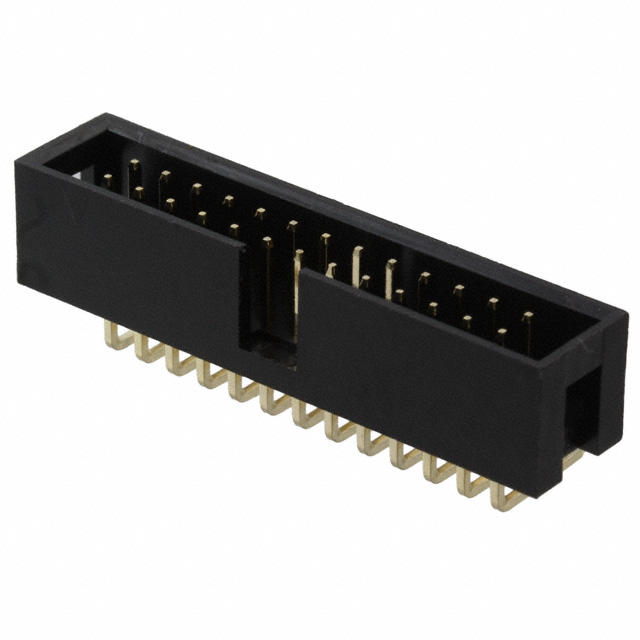

302-R261
Or copy the link below:
- Mfr.Part #
- 302-R261
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 26POS 2.54MM
- Stock
- 958
- In Stock ：
- 958
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Black
- Contact Finish Thickness - Mating :
- Flash
- Reliability :
- COMMERCIAL
- Contact Shape :
- Square
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tray
- Insulation Height :
- 0.358 9.10mm
- Style :
- Board to Cable/Wire
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mating Contact Pitch :
- 0.1 inch
- PCB Contact Pattern :
- RECTANGULAR
- Contact Type :
- Male Pin
- Fastening Type :
- Push-Pull
- Polarization Key :
- POLARIZED HOUSING
- Reference Standard :
- UL
- Body Depth :
- 0.508 inch
- Contact Length - Post :
- 0.122 3.10mm
- Number of Positions :
- 26
- Body Length or Diameter :
- 1.6 inch
- Body Breadth :
- 0.358 inch
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Operating Temperature :
- -40°C~105°C
- Feature :
- Keying Slot
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Polyester, Glass Filled
- Insulation Resistance :
- 1000000000Ohm
- Pitch - Mating :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 2
- Current Rating (Amps) :
- 3A
- Dielectric Withstanding Voltage :
- 1500VAC V
- Number of Rows :
- 2
- Voltage - Rated :
- 250V
- Mount :
- Through Hole
- Connector Type :
- Header
- Series :
- 302
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 8 Weeks
- Datasheets
- 302-R261
302-R261 Documents
302 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 26-Position Board to Cable/Wire 0.358 9.10mm Height
302-R261 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 302 Series.Several benefits come from the Keying Slot feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
302-R261 Features
302 series
302-R261 Applications
There are a lot of On Shore Technology Inc.
302-R261 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
