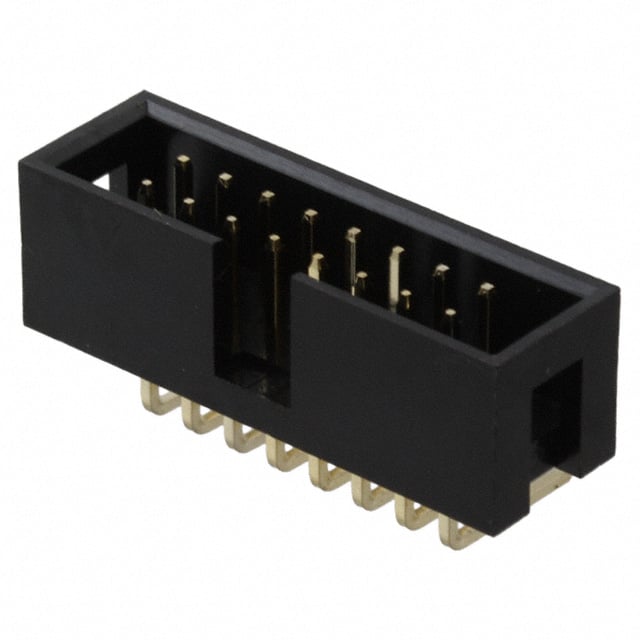

302-R161
Or copy the link below:
- Mfr.Part #
- 302-R161
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 16POS 2.54MM
- Stock
- 9,446
- In Stock ：
- 9,446
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- PCB Contact Pattern :
- RECTANGULAR
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Series :
- 302
- Style :
- Board to Cable/Wire
- Insulation Resistance :
- 1000000000Ohm
- Mount :
- Through Hole
- Voltage - Rated :
- 250V
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Body Length or Diameter :
- 1.1 inch
- Contact Material :
- Brass
- Fastening Type :
- Push-Pull
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -40°C~105°C
- Number Of PCB Rows :
- 2
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Contact Finish Thickness - Mating :
- Flash
- Number of Positions :
- 16
- Mating Contact Pitch :
- 0.1 inch
- Feature :
- Keying Slot
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.122 3.10mm
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.100 2.54mm
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.358 9.10mm
- Contact Shape :
- Square
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Gold
- Body Breadth :
- 0.358 inch
- Current Rating (Amps) :
- 3A
- Packaging :
- Tray
- Body Depth :
- 0.508 inch
- Insulation Material :
- Polyester, Glass Filled
- Insulation Color :
- Black
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 1500VAC V
- Datasheets
- 302-R161
302-R161 Documents
302 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 16-Position Board to Cable/Wire 0.358 9.10mm Height
302-R161 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the 302 Series.There are a number of advantages to its Keying Slot feature.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
302-R161 Features
302 series
302-R161 Applications
There are a lot of On Shore Technology Inc.
302-R161 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
