300HBT2R06

Share

Or copy the link below:

Mfr.Part #
300HBT2R06
Manufacturer
On-Shore Technology, Inc.
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 6POS 3MM
Stock
36,944
In Stock :
36,944

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
On-Shore Technology, Inc.
Product Category :
Headers, Male Pins
Insulation Material :
Polyamide (PA6T), Nylon 6T
Feature :
Board Lock
Contact Material :
Brass
Shrouding :
Shrouded - 4 Wall
Insulation Color :
Black
Voltage - Rated :
250V
Insulation Height :
0.290 7.37mm
Number of Positions :
6
Current Rating (Amps) :
5A
PCB Contact Pattern :
RECTANGULAR
Contact Shape :
Square
Pitch - Mating :
0.118 3.00mm
Style :
Board to Cable/Wire
Polarization Key :
POLARIZED HOUSING
Material Flammability Rating :
UL94 V-0
Operating Temperature :
-40°C~105°C
Contact Finish - Mating :
Tin
Contact Resistance :
10MOhm
Number Of PCB Rows :
2
Mount :
Through Hole
Fastening Type :
Locking Ramp
Contact Length - Post :
0.126 3.20mm
Row Spacing - Mating :
0.118 (3.00mm)
Additional Feature :
RoHS Compliant
Reference Standard :
UL
Body Breadth :
0.345 inch
Reliability :
COMMERCIAL
RoHS Status :
ROHS3 Compliant
Dielectric Withstanding Voltage :
1500VAC V
Connector Type :
Header
Number of Positions Loaded :
All
Packaging :
Bulk
Number of Conductors :
ONE
Mounting Type :
Through Hole, Right Angle
Body Depth :
0.481 inch
Termination :
Solder
Mating Contact Pitch :
0.118 inch
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Factory Lead Time :
8 Weeks
Body Length or Diameter :
0.5 inch
Contact Type :
Male Pin
Number of Rows :
2
Insulation Resistance :
1000000000Ohm
Datasheets
300HBT2R06
Introducing Headers, Male Pins On-Shore Technology, Inc. 300HBT2R06 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~105°C, Mounting Type:Through Hole, Right Angle, 300HBT2R06 pinout, 300HBT2R06 datasheet PDF, 300HBT2R06 amp .Beyond Headers, Male Pins On-Shore Technology, Inc. 300HBT2R06 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

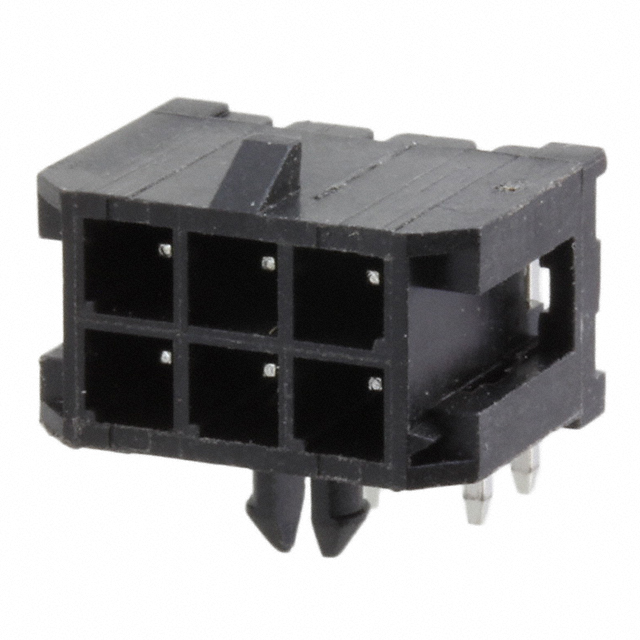

On-Shore Technology, Inc. 300HBT2R06


2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA6T), Nylon 6T 6-Position Board to Cable/Wire 0.290 7.37mm Height

300HBT2R06 Overview


It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.

300HBT2R06 Features




300HBT2R06 Applications


There are a lot of On Shore Technology Inc.
300HBT2R06 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
