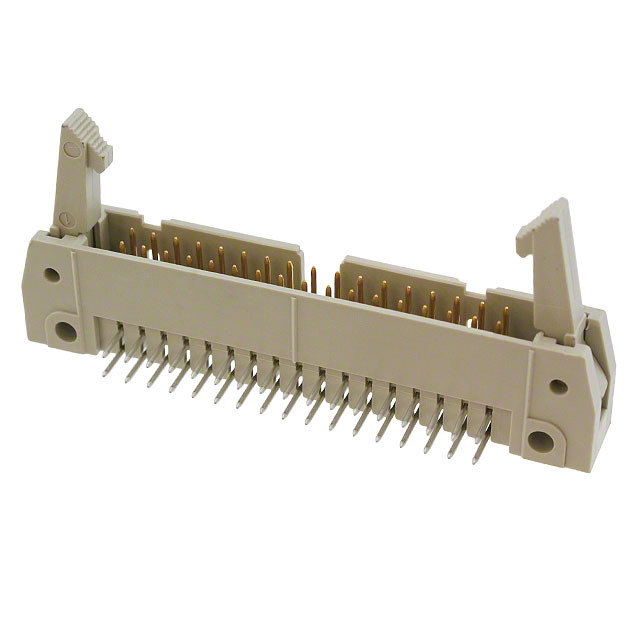

3-828586-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Number of Rows :

2

Style :

Board to Cable/Wire

Reference Standard :

UL, CSA

Depth :

27.3mm

JESD-609 Code :

e3

Contact Finish Thickness - Mating :

31.5μin 0.80μm

Orientation :

RIGHT ANGLE

Shrouding :

Shrouded - 4 Wall

Gender :

Male

REACH SVHC :

Unknown

UL Flammability Code :

94V-0

Termination :

Solder

Lead Length :

3.1mm

Pitch - Mating :

0.100 2.54mm

Feature :

Keying Slot, Mounting Flange

Mounting Type :

Through Hole, Right Angle

Series :

AMP-Latch

Plating Thickness :

31μin

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Row Spacing - Mating :

0.100 (2.54mm)

IEC Conformance :

No

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Insulation Color :

Gray

RoHS Status :

RoHS Compliant

Contact Plating :

Gold, Tin

HTS Code :

8536.69.40.40

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Polarization Key :

CTR W/GUIDE SLOTS

Packaging :

Bulk

Number of Conductors :

ONE

Color :

Grey

Housing Material :

Thermoplastic

Radiation Hardening :

No

Contact Type :

Male Pin

Rated Current (Signal) :

1A

Flammability Rating :

UL94 V-0

Contact Material :

Brass

Published :

2003

Mixed Contacts :

No

Number of Positions Loaded :

All

ECCN Code :

EAR99

PCB Mounting Orientation :

RIGHT ANGLE

Lead Pitch :

2.54mm

Fastening Type :

Latch Lock/Eject Hooks

Length :

62.5mm

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Connector Type :

Header

ELV :

Compliant

Total Number of Contacts :

34

Dielectric Withstanding Voltage :

1000VAC V

Contact Finish - Mating :

Gold or Gold-Palladium

Filter Feature :

No

Operating Temperature (Max) :

105°C

Operating Temperature (Min) :

-65°C

Number of Positions :

34
