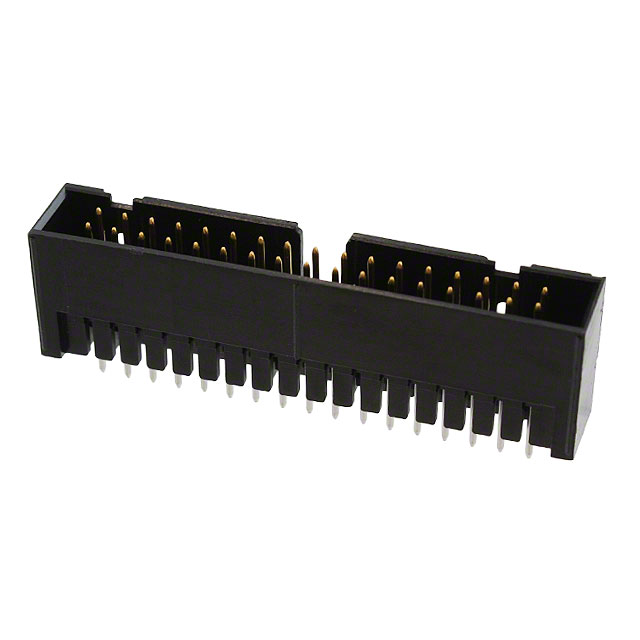

3-827745-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

31.5μin 0.80μm

ELV :

Compliant

Total Number of Contacts :

34

Number Of PCB Rows :

2

Depth :

8.8mm

HTS Code :

8536.69.40.40

MIL Conformance :

No

Housing Material :

Thermoplastic

Contact Finish - Mating :

Gold or Gold-Palladium

Style :

Board to Cable/Wire

Insulation Color :

Black

Mounting Type :

Through Hole

IEC Conformance :

No

Termination :

Solder

Mount :

Through Hole

Number of Rows :

2

Contact Plating :

Tin

Number of Positions Loaded :

All

Reference Standard :

UL, CSA

Polarization Key :

CTR W/GUIDE SLOTS

Contact Gender :

Male

ECCN Code :

EAR99

Plating Thickness :

31μin

Published :

2008

RoHS Status :

RoHS Compliant

UL Flammability Code :

94V-0

Packaging :

Bulk

Number of Conductors :

ONE

Pitch - Mating :

0.100 2.54mm

Connector Type :

Header

DIN Conformance :

No

Shrouding :

Shrouded - 4 Wall

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Series :

AMP-Latch

Row Spacing - Mating :

0.100 (2.54mm)

Length :

49.8mm

Number of Positions :

34

Factory Lead Time :

10 Weeks

Dielectric Withstanding Voltage :

1000VAC V

JESD-609 Code :

e3

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Filter Feature :

No

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Round

Insulation Resistance :

1000000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Min) :

-65°C

Operating Temperature (Max) :

105°C

Contact Material :

Brass

Radiation Hardening :

No

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Lead Length :

3mm

Orientation :

Vertical

Contact Type :

Male Pin

Rated Current (Signal) :

1A
