3-826953-6
Or copy the link below:
- Mfr.Part #
- 3-826953-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 72POS 2.54MM
- Stock
- 177
- In Stock ：
- 177
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Green
- Material Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Shape :
- Square
- Published :
- 2011
- Contact Length - Mating :
- 0.264 6.70mm
- Lead Length :
- 3.19786mm
- Plating Thickness :
- 2μm
- Termination :
- Solder
- Series :
- AMPMODU Mod II
- Connector Type :
- Header, Breakaway
- Current Rating (Amps) :
- 5A
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Style :
- Board to Board or Cable
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Max Operating Temperature :
- 105°C
- Packaging :
- Bulk
- Contact Finish - Post :
- Tin
- Shrouding :
- Unshrouded
- High Speed Serial Data Connector :
- No
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Male Pin
- Operating Temperature :
- -65°C~105°C
- Pitch - Mating :
- 0.100 2.54mm
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Number of Rows :
- 2
- Number of Positions :
- 72
- High Temperature Housing :
- No
- Mount :
- Through Hole
- Contact Plating :
- Tin
- Insulation Height :
- 0.219 5.56mm
- Min Operating Temperature :
- -65°C
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Mating Post Length :
- 6.7mm
- Contact Current Rating :
- 5A
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Contacts :
- 72
- Keyed :
- No
- Housing Color :
- Green
- Contact Length - Post :
- 0.126 3.20mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Housing Material :
- PBT
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 23 Weeks
- Flammability Rating :
- UL94 V-0
- Pitch :
- 2.54mm
- Datasheets
- 3-826953-6

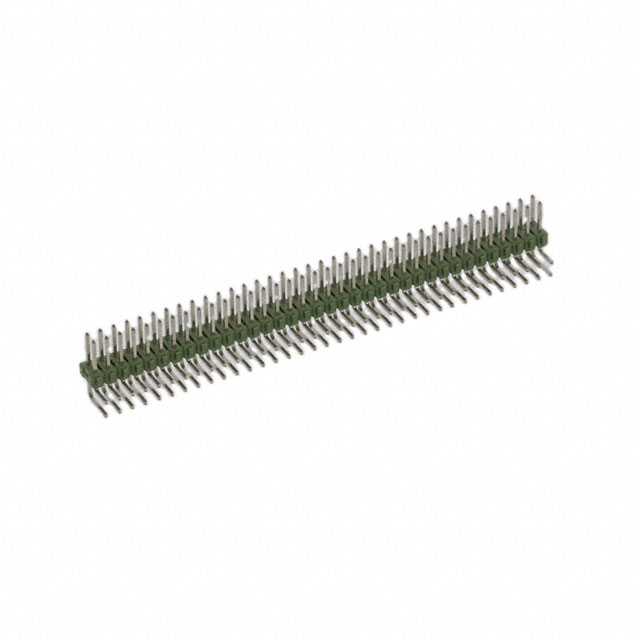

AMPMODU Mod II Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT) 72-Position Board to Board or Cable 0.219 5.56mm Height
3-826953-6 Overview
Packaging is Header, Breakaway.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -65°C for this device.In this case, Through Hole mounts the part.The device is operating at -65°C~105°C Operating Temperature.
