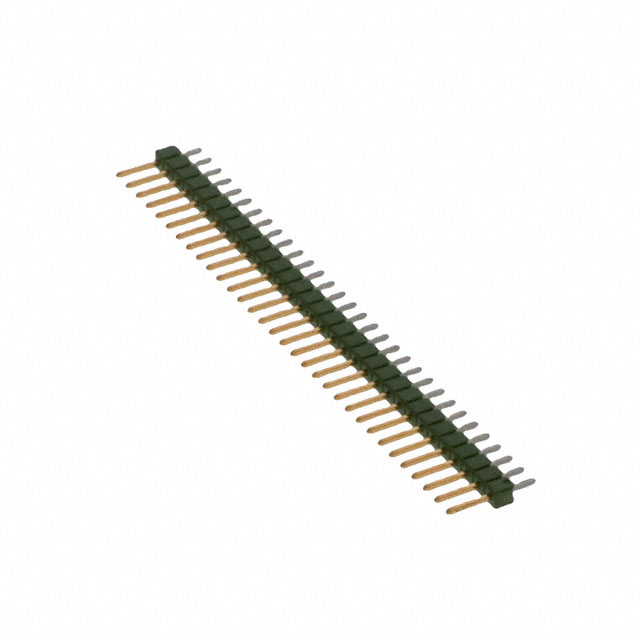

3-826646-2
Or copy the link below:
- Mfr.Part #
- 3-826646-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 32POS 2.54MM
- Stock
- 17,455
- In Stock ：
- 17,455
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header, Breakaway
- Contact Type :
- Male Pin
- Reference Standard :
- UL
- Housing Material :
- Thermoplastic
- Number Of PCB Rows :
- 1
- DIN Conformance :
- No
- Packaging :
- Bulk
- Body Breadth :
- 0.098 inch
- ECCN Code :
- EAR99
- Style :
- Board to Board or Cable
- Depth :
- 2.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5000000000Ohm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Series :
- AMPMODU Mod II
- Keyed :
- No
- UL Flammability Code :
- 94V-0
- Overall Contact Length :
- 0.465 11.81mm
- Lead Pitch :
- 2.54mm
- Factory Lead Time :
- 23 Weeks
- Length :
- 81.28mm
- Number of Conductors :
- ONE
- Fastening Type :
- Push-Pull
- Number of Positions Loaded :
- All
- Reliability :
- COMMERCIAL
- Lead Length :
- 3.19786mm
- Option :
- GENERAL PURPOSE
- Contact Length - Mating :
- 0.228 5.80mm
- Current Rating (Amps) :
- 5A
- PCB Mounting Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- RoHS Status :
- RoHS Compliant
- Filter Feature :
- No
- Contact Shape :
- Square
- Mating Post Length :
- 5.8mm
- Contact Plating :
- Gold, Tin
- Published :
- 2004
- HTS Code :
- 8536.69.40.40
- Number of Positions :
- 32
- REACH SVHC :
- No SVHC
- Mixed Contacts :
- No
- Contact Material :
- Brass
- Contact Length - Post :
- 0.126 3.20mm
- Number of Rows :
- 1
- Insulation Height :
- 0.110 2.79mm
- Mounting Type :
- Through Hole
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- Shrouding :
- Unshrouded
- Contact Finish - Post :
- Tin
- Plating Thickness :
- 800 nm
- Insulation Color :
- Green
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Gender :
- Male
- Current Rating :
- 3A
- Operating Temperature :
- -65°C~105°C
- Row Spacing :
- 2.54 mm
- MIL Conformance :
- No
- Mount :
- Straddle Mount
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 3-826646-2
AMPMODU Mod II Series 1-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 32-Position Board to Board or Cable 0.110 2.79mm Height
3-826646-2 Overview
Packaging is Header, Breakaway.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Straddle Mount mounts the part.The device is operating at -65°C~105°C Operating Temperature.
3-826646-2 Features
AMPMODU Mod II series
3-826646-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-826646-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
