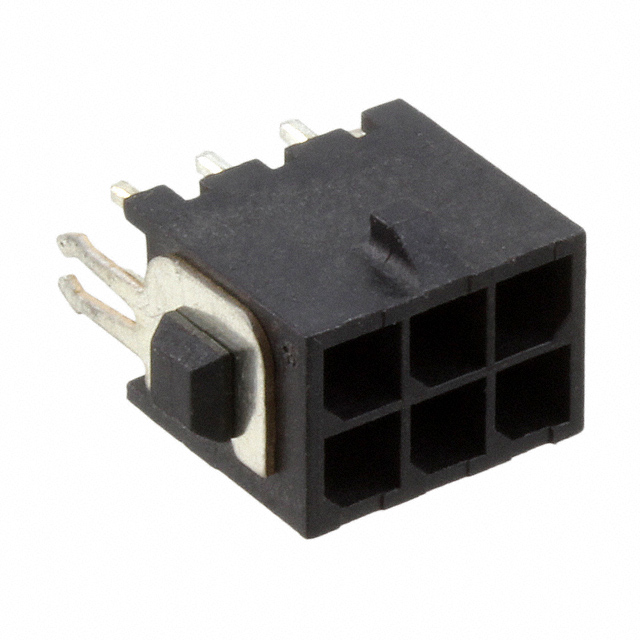

3-794682-6
Or copy the link below:
- Mfr.Part #
- 3-794682-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3MM
- Stock
- 3,002
- In Stock ：
- 3,002
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -40°C
- Series :
- Micro MATE-N-LOK
- ELV :
- Compliant
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 250V
- Shrouding :
- Shrouded - 4 Wall
- VDE Tested :
- yes
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Number of Contacts :
- 6
- Voltage - Rated :
- 250V
- Sealable :
- No
- Number of Rows :
- 2
- Packaging :
- Tray
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.125 3.18mm
- Published :
- 2008
- Feature :
- Board Lock
- Depth :
- 8.67mm
- Circuit Application :
- Power
- Number of Ports :
- 1
- Style :
- Board to Cable/Wire
- Color :
- Black
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.118 3.00mm
- Housing Color :
- Black
- Approval Agency :
- CSA
- Contact Current Rating :
- 5A
- Insulation Color :
- Black
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Positions Loaded :
- All
- Plating Thickness :
- 2.54μm
- Contact Retention :
- Without
- Insulation Height :
- 0.364 9.25mm
- Current Rating (Amps) :
- Varies by WireGAuge
- PCB Thickness :
- 1.57mm
- Orientation :
- Vertical
- Length :
- 13mm
- Factory Lead Time :
- 18 Weeks
- Contact Finish - Mating :
- Gold
- Contact Material :
- Brass
- Contact Shape :
- Square
- Operating Temperature :
- -40°C~105°C
- Contact Resistance :
- 20mOhm
- Width :
- 6.86mm
- Fastening Type :
- Locking Ramp
- Plating :
- Gold
- Contact Plating :
- Tin, Gold
- Operating Supply Voltage :
- 250V
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- Male
- Height :
- 13.97mm
- Number of Power Positions :
- 6
- Applications :
- GENERAL PURPOSE
- Pitch :
- 2.9972mm
- PCB Mounting Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole
- Current Rating :
- 5A
- Max Operating Temperature :
- 221°C
- Number of Positions :
- 6
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Terminations :
- 6
- Lead Free :
- Lead Free
- Datasheets
- 3-794682-6
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.364 9.25mm Height
3-794682-6 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Micro MATE-N-LOK Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -40°C at all times.The device is equipped with 1 ports for the management of a variety of tasks.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.6 terminations are present on the chip.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
3-794682-6 Features
6 basic kinds of terminations
Micro MATE-N-LOK series
3-794682-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-794682-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
