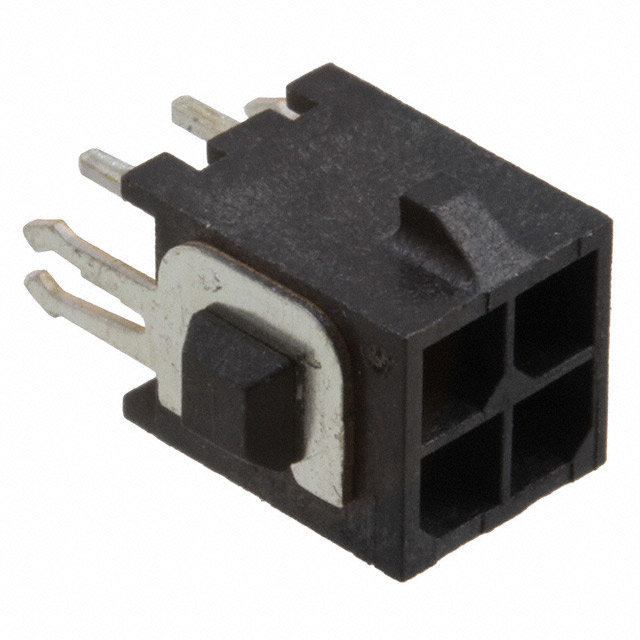

3-794682-4
Or copy the link below:
- Mfr.Part #
- 3-794682-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3MM
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Contact Material :
- Brass
- Feature :
- Board Lock
- DIN Conformance :
- No
- Width :
- 6.86mm
- VDE Tested :
- yes
- Pbfree Code :
- yes
- PCB Thickness :
- 1.57mm
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions :
- 4
- Mounting Type :
- Through Hole
- Contact Shape :
- Square
- Number of Ports :
- 1
- Contact Retention :
- Without
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Resistance :
- 20mOhm
- Max Voltage Rating (DC) :
- 250V
- Mount :
- Through Hole
- Max Voltage Rating (AC) :
- 250V
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -40°C~105°C
- ELV :
- Compliant
- Number Of PCB Rows :
- 2
- Number of Rows :
- 2
- Depth :
- 8.67mm
- Sealable :
- No
- Height :
- 13.97mm
- Operating Supply Voltage :
- 250V
- Lead Free :
- Lead Free
- MIL Conformance :
- No
- Fastening Type :
- Locking Ramp
- Reliability :
- COMMERCIAL
- Contact Current Rating :
- 5A
- Contact Plating :
- Tin, Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Empty Shell :
- No
- IEC Conformance :
- No
- Durability :
- 75 Cycles
- Insulation Color :
- Black
- Current Rating :
- 5A
- Factory Lead Time :
- 17 Weeks
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Power
- Insulation Material :
- Polyamide (PA), Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Plating Thickness :
- 2.54μm
- Shrouding :
- Shrouded - 4 Wall
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Mixed Contacts :
- No
- Orientation :
- Vertical
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Type :
- Male Pin
- Length :
- 10mm
- Contact Gender :
- Male
- Contact Length - Post :
- 0.125 3.18mm
- Style :
- Board to Cable/Wire
- Approval Agency :
- CSA
- Published :
- 2008
- Number of Positions Loaded :
- All
- Applications :
- GENERAL PURPOSE
- Series :
- Micro MATE-N-LOK
- Number of Conductors :
- ONE
- Housing Material :
- Nylon
- Insulation Height :
- 0.364 9.25mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Filter Feature :
- No
- Row Spacing - Mating :
- 0.118 (3.00mm)
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.118 3.00mm
- Contact Finish - Post :
- Tin
- Datasheets
- 3-794682-4
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.364 9.25mm Height
3-794682-4 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Micro MATE-N-LOK Series.A variety of tasks can be performed using its 1 ports.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.It runs on 250V voltage.Devices operate at -40°C~105°C operating temperatures.
3-794682-4 Features
Micro MATE-N-LOK series
3-794682-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-794682-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
