3-794681-8
Or copy the link below:
- Mfr.Part #
- 3-794681-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 3MM
- Stock
- 2,221
- In Stock ：
- 2,221
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Max Operating Temperature :
- 221°C
- Length :
- 13mm
- Approval Agency :
- CSA
- Connector Type :
- Header
- Number of Ports :
- 1
- Min Operating Temperature :
- -40°C
- Depth :
- 8.67mm
- Number of Terminations :
- 8
- Contact Shape :
- Square
- PCB Thickness :
- 1.57mm
- Housing Color :
- Black
- Color :
- Black
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Circuit Application :
- Power
- Insulation Height :
- 0.364 9.25mm
- Termination :
- Solder
- Number of Positions :
- 8
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 250V
- Feature :
- Board Lock
- Series :
- Micro MATE-N-LOK
- Plating :
- Gold
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Voltage - Rated :
- 250V
- Material Flammability Rating :
- UL94 V-0
- Number of Pins :
- 8
- Current Rating :
- 5A
- Contact Length - Post :
- 0.125 3.18mm
- Lead Free :
- Lead Free
- Factory Lead Time :
- 19 Weeks
- Fastening Type :
- Locking Ramp
- Contact Retention :
- Without
- Housing Material :
- Nylon
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Current Rating (Amps) :
- Varies by WireGAuge
- Plating Thickness :
- 2.54μm
- PCB Mounting Orientation :
- Vertical
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Radiation Hardening :
- No
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Applications :
- GENERAL PURPOSE
- Contact Material :
- Brass
- Number of Contacts :
- 8
- Pitch - Mating :
- 0.118 3.00mm
- Contact Finish - Post :
- Tin
- Contact Plating :
- Tin, Gold
- Mount :
- Through Hole
- Pitch :
- 2.9972mm
- Packaging :
- Tray
- Orientation :
- Vertical
- Number of Rows :
- 2
- VDE Tested :
- yes
- Contact Finish - Mating :
- Gold
- Contact Current Rating :
- 5A
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Published :
- 2007
- Number of Power Positions :
- 8
- Max Voltage Rating (AC) :
- 250V
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Black
- Sealable :
- No
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 3-794681-8

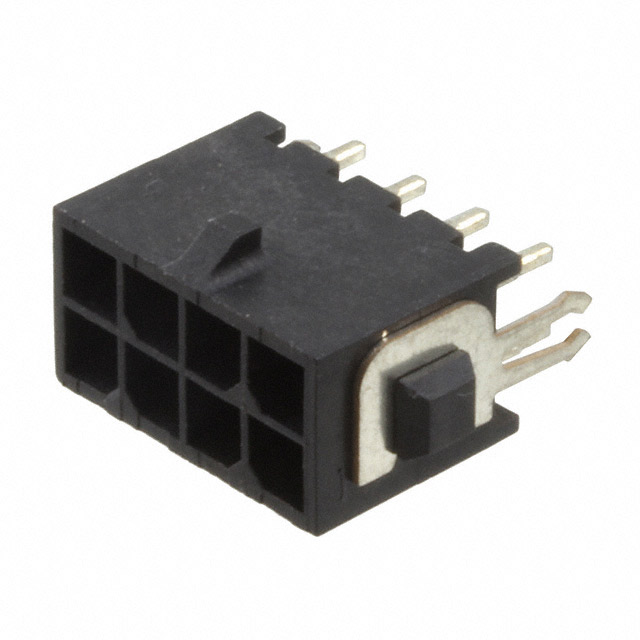

Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.364 9.25mm Height
3-794681-8 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Micro MATE-N-LOK Series, it can be found in this category.It has 8 pins.Temperatures below 221°C are best for using it.There's a minimum temperature of -40°C for this device.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.It has a termination of 8.The memory's operating supply voltage is 250V.The device is operating at -40°C~105°C Operating Temperature.
