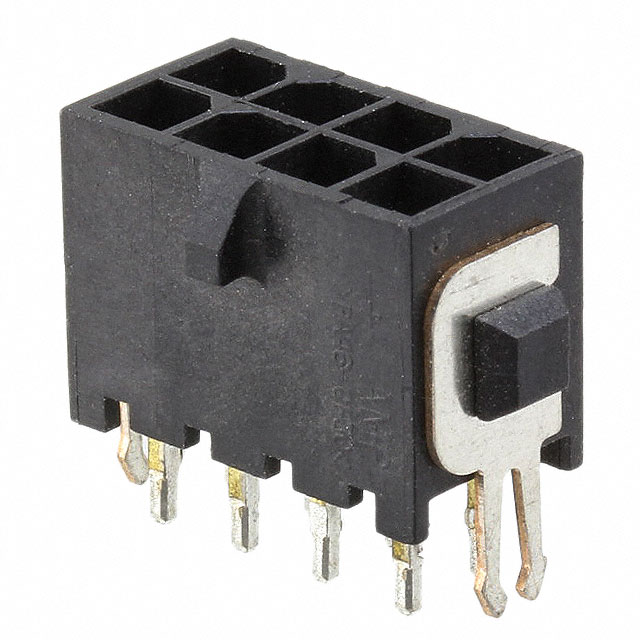

3-794680-8
Or copy the link below:
- Mfr.Part #
- 3-794680-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 3MM
- Stock
- 6,061
- In Stock ：
- 6,061
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- PCB Mounting Orientation :
- Vertical
- Current Rating :
- 5A
- Sealable :
- No
- Orientation :
- Vertical
- Max Operating Temperature :
- 221°C
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Color :
- Black
- Mount :
- Through Hole
- Published :
- 2008
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Depth :
- 9.24mm
- Feature :
- Board Lock
- Factory Lead Time :
- 19 Weeks
- Contact Current Rating :
- 5A
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- Length :
- 16mm
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 250V
- REACH SVHC :
- Unknown
- Contact Retention :
- Without
- Plating :
- Tin
- Mounting Type :
- Through Hole
- Applications :
- GENERAL PURPOSE
- Operating Temperature :
- -40°C~105°C
- Pitch :
- 2.9972mm
- Number of Rows :
- 2
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Type :
- Male Pin
- Operating Supply Voltage :
- 250V
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.364 9.25mm
- Contact Plating :
- Tin
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.118 3.00mm
- Voltage - Rated :
- 250V
- Insulation Color :
- Black
- Connector Type :
- Header
- Number of Contacts :
- 8
- Packaging :
- Tray
- Number of Terminations :
- 8
- Contact Length - Post :
- 0.125 3.18mm
- Number of Power Positions :
- 8
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions :
- 8
- PCB Thickness :
- 1.57mm
- Housing Material :
- Nylon
- Contact Material :
- Brass
- Min Operating Temperature :
- -40°C
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Gender :
- Male
- Circuit Application :
- Power
- Series :
- Micro MATE-N-LOK
- Number of Ports :
- 1
- VDE Tested :
- yes
- Housing Color :
- Black
- Plating Thickness :
- 2.54μm
- Datasheets
- 3-794680-8
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.364 9.25mm Height
3-794680-8 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Micro MATE-N-LOK Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -40°C degrees.There are 1 ports available for a variety of tasks to be performed on it.This device may be used for the purpose of General Purpose.A number of features make the Board Lock feature more powerful.Through Hole represents the mounting point for the part.A 8 termination is present on the chip.You're going to need 250V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
3-794680-8 Features
8 basic kinds of terminations
Micro MATE-N-LOK series
3-794680-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-794680-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
