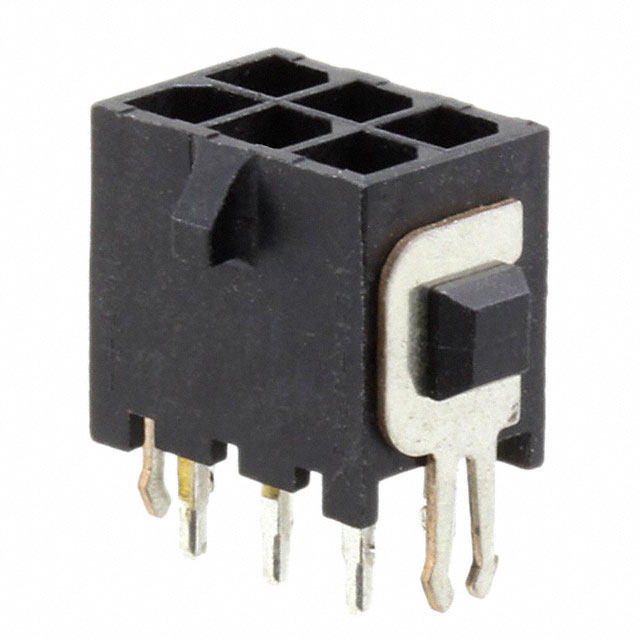

3-794680-6
Or copy the link below:
- Mfr.Part #
- 3-794680-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3MM
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- Varies by WireGAuge
- Applications :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Sealable :
- No
- Orientation :
- Vertical
- Number of Terminations :
- 6
- Gender :
- Male
- Contact Retention :
- Without
- Mount :
- Through Hole
- Number of Contacts :
- 6
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA), Nylon
- Feature :
- Board Lock
- Operating Temperature :
- -40°C~105°C
- Current Rating :
- 5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Approval Agency :
- CSA
- VDE Tested :
- yes
- Contact Current Rating :
- 5A
- Shrouding :
- Shrouded - 4 Wall
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Plating :
- Tin
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- PCB Thickness :
- 1.57mm
- Pitch - Mating :
- 0.118 3.00mm
- Number of Positions Loaded :
- All
- Circuit Application :
- Power
- Packaging :
- Tray
- Style :
- Board to Cable/Wire
- Published :
- 2005
- Insulation Height :
- 0.364 9.25mm
- Pitch :
- 2.9972mm
- Factory Lead Time :
- 19 Weeks
- Radiation Hardening :
- No
- Voltage - Rated :
- 250V
- Contact Gender :
- Male
- Contact Length - Post :
- 0.125 3.18mm
- Contact Shape :
- Square
- Color :
- Black
- Depth :
- 9.24mm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Length :
- 13mm
- Min Operating Temperature :
- -40°C
- Operating Supply Voltage :
- 250V
- Contact Material :
- Brass
- Number of Positions :
- 6
- Termination :
- Solder
- Series :
- Micro MATE-N-LOK
- Insulation Color :
- Black
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Number of Ports :
- 1
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 2.54μm
- Housing Material :
- Nylon
- Max Voltage Rating (AC) :
- 250V
- Number of Power Positions :
- 6
- Datasheets
- 3-794680-6
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.364 9.25mm Height
3-794680-6 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Micro MATE-N-LOK Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device has 1 ports that can be used to manage a variety of tasks.The device could be used for the following application: General Purpose.There are a number of advantages to its Board Lock feature.Part Through Hole is mounted to the part.The chip is terminated with a 6.250V is the operating supply voltage for this memory.As a result, the device runs at -40°C~105°C Operating Temperature.
3-794680-6 Features
6 basic kinds of terminations
Micro MATE-N-LOK series
3-794680-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-794680-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
