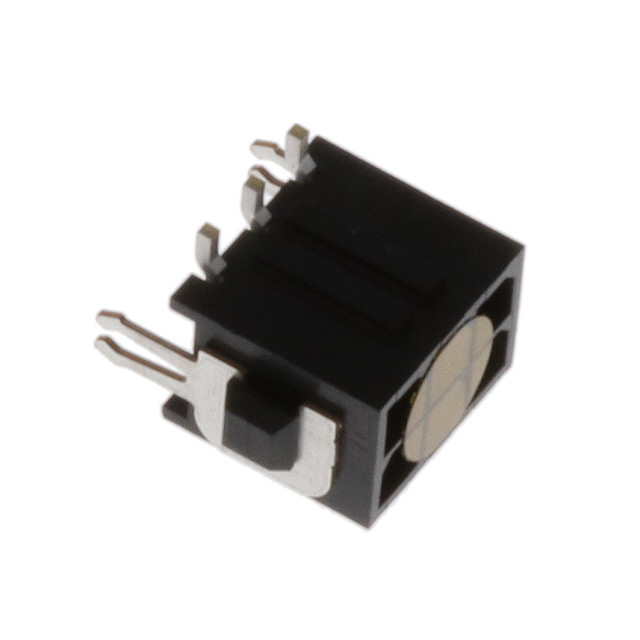

3-794635-6
Or copy the link below:
- Mfr.Part #
- 3-794635-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 3MM
- Stock
- 606
- In Stock ：
- 606
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Approval Agency :
- CSA
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Surface Mount
- Insulation Height :
- 0.364 9.25mm
- Operating Temperature :
- -40°C~105°C
- Contact Plating :
- Tin, Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Black
- Circuit Application :
- Power
- Number of Positions :
- 6
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Orientation :
- Vertical
- Lead Free :
- Lead Free
- Pitch - Mating :
- 0.118 3.00mm
- Min Operating Temperature :
- -40°C
- Current Rating :
- 5A
- Pitch :
- 2.9972mm
- Mount :
- Surface Mount
- Max Operating Temperature :
- 221°C
- Applications :
- General Purpose, Industrial, Lighting
- PCB Mounting Orientation :
- Vertical
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Color :
- Black
- PCB Thickness :
- 1.57mm
- Style :
- Board to Cable/Wire
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Plating Thickness :
- 2.54μm
- VDE Tested :
- yes
- Length :
- 9.86mm
- Published :
- 2008
- Plating :
- Gold
- Radiation Hardening :
- No
- Contact Gender :
- Male
- Contact Current Rating :
- 5A
- Number of Rows :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- Without
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 16 Weeks
- Sealable :
- No
- Contact Shape :
- Square
- Height :
- 9.24mm
- Fastening Type :
- Locking Ramp
- Series :
- Micro MATE-N-LOK
- Number of Contacts :
- 6
- Number of Power Positions :
- 6
- Operating Supply Voltage :
- 250V
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Type :
- Male Pin
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Voltage - Rated :
- 250V
- ELV :
- Compliant
- Housing Material :
- Nylon
- Feature :
- Board Lock, Pick and Place
- Contact Finish - Mating :
- Gold
- Packaging :
- Tape and Reel (TR)
- Insulation Color :
- Black
- Contact Material :
- Brass
- Insulation Material :
- Polyamide (PA), Nylon
- Datasheets
- 3-794635-6
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.364 9.25mm Height
3-794635-6 Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Micro MATE-N-LOK Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device could be used for the following application: General Purpose, Industrial, Lighting.There are a number of advantages to its Board Lock, Pick and Place feature.Part Surface Mount is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -40°C~105°C Operating Temperature.
3-794635-6 Features
Micro MATE-N-LOK series
3-794635-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-794635-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
