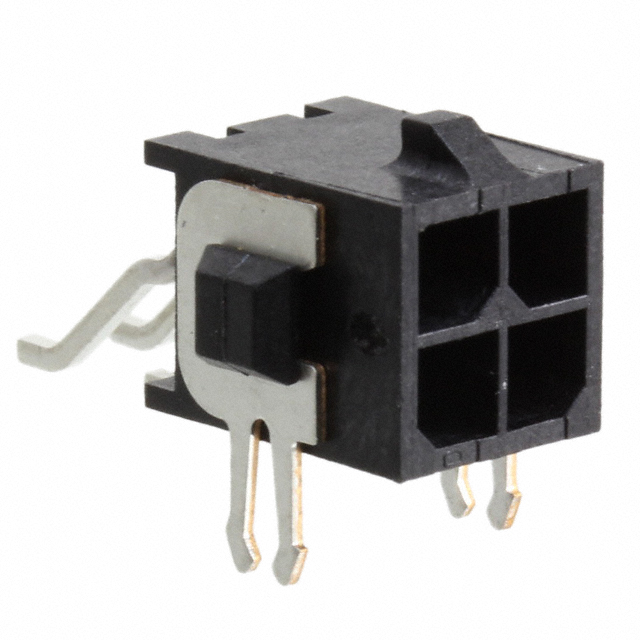

3-794626-4
Or copy the link below:
- Mfr.Part #
- 3-794626-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 4POS 3MM
- Stock
- 196
- In Stock ：
- 196
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Plating Thickness :
- 2.54μm
- Contact Current Rating :
- 5A
- Number of Contacts :
- 4
- Height :
- 7.37mm
- RoHS Status :
- RoHS Compliant
- Applications :
- GENERAL PURPOSE
- VDE Tested :
- yes
- Orientation :
- RIGHT ANGLE
- Feature :
- Board Lock
- Factory Lead Time :
- 16 Weeks
- Contact Finish - Mating :
- Gold
- Contact Gender :
- Male
- Width :
- 7.37mm
- Insulation Height :
- 0.290 7.37mm
- Flammability Rating :
- UL94 V-0
- Published :
- 2008
- Pitch :
- 2.9972mm
- Plating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.118 3.00mm
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Fastening Type :
- Locking Ramp
- Depth :
- 15.63mm
- Number of Positions :
- 4
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Material Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Max Operating Temperature :
- 221°C
- Contact Plating :
- Tin, Gold
- PCB Thickness :
- 1.57mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 250V
- Length :
- 4mm
- Connector Type :
- Header
- Mount :
- Surface Mount
- Insulation Color :
- Black
- Number of Power Positions :
- 4
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Color :
- Black
- Contact Shape :
- Square
- Termination :
- Solder
- Operating Supply Voltage :
- 250V
- Packaging :
- Tape and Reel (TR)
- Contact Finish - Post :
- Tin
- Mounting Type :
- Surface Mount, Right Angle
- Contact Type :
- Male Pin
- Radiation Hardening :
- No
- Circuit Application :
- Power
- Operating Temperature :
- -40°C~105°C
- Number of Ports :
- 1
- Number of Rows :
- 2
- Current Rating :
- 5A
- Min Operating Temperature :
- -40°C
- Voltage - Rated :
- 250V
- Housing Material :
- Nylon
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Sealable :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Retention :
- Without
- Number of Terminations :
- 4
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Material :
- Brass
- Series :
- Micro MATE-N-LOK
- Approval Agency :
- CSA
- ELV :
- Compliant
- Datasheets
- 3-794626-4
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.290 7.37mm Height
3-794626-4 Overview
Packaging is Header.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Micro MATE-N-LOK Series, it can be found in this category.Temperatures below 221°C are best for using it.There's a minimum temperature of -40°C for this device.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose.With its Board Lock feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.It has a termination of 4.The memory's operating supply voltage is 250V.The device is operating at -40°C~105°C Operating Temperature.
