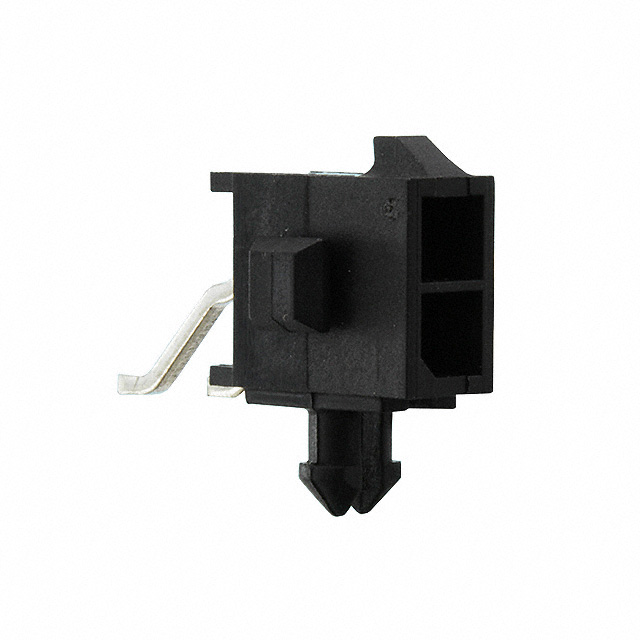

3-794621-2
Or copy the link below:
- Mfr.Part #
- 3-794621-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS
- Stock
- 36,293
- In Stock ：
- 36,293
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Plating :
- Tin
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Number of Rows :
- 2
- ELV :
- Compliant
- Number of Contacts :
- 2
- Housing Material :
- Nylon
- Operating Supply Voltage :
- 250V
- Voltage - Rated :
- 250V
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Insulation Color :
- Black
- Insulation Height :
- 0.290 7.37mm
- Series :
- Micro MATE-N-LOK
- Current Rating :
- 5A
- Number of Power Positions :
- 2
- Color :
- Black
- Pitch :
- 3mm
- Radiation Hardening :
- No
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Gender :
- Male
- Contact Retention :
- Without
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Width :
- 7.37mm
- Mounting Type :
- Surface Mount, Right Angle
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~105°C
- Applications :
- GENERAL PURPOSE
- Number of Positions :
- 2
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Style :
- Board to Cable/Wire
- Circuit Application :
- Power
- Factory Lead Time :
- 15 Weeks
- Contact Finish - Mating :
- Tin
- Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2008
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- Varies by WireGAuge
- Datasheets
- 3-794621-2
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.290 7.37mm Height
3-794621-2 Overview
The packaging contains Header.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro MATE-N-LOK belongs to the Micro MATE-N-LOK Series.In addition to General Purpose, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Surface Mount mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.
3-794621-2 Features
Micro MATE-N-LOK series
3-794621-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-794621-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
