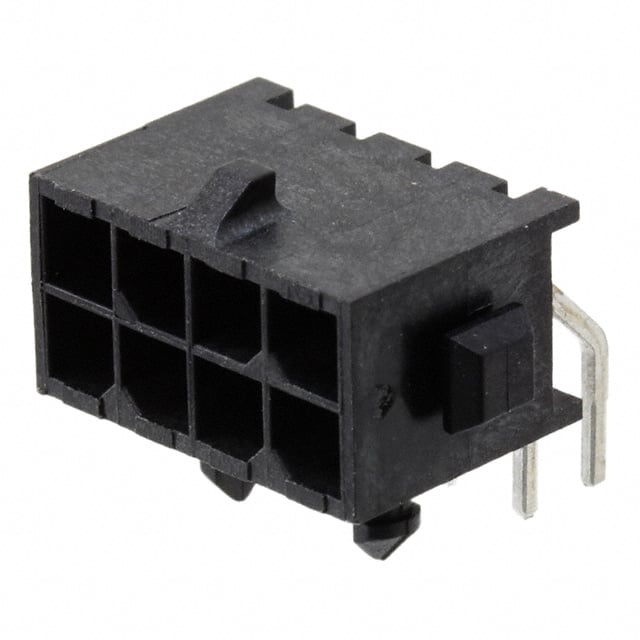

3-794619-8
Or copy the link below:
- Mfr.Part #
- 3-794619-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 3MM
- Stock
- 2,290
- In Stock ：
- 2,290
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -40°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Feature :
- Board Lock
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- Varies by WireGAuge
- Published :
- 2008
- Sealable :
- No
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Housing Material :
- Nylon
- Connector Type :
- Header
- Number of Contacts :
- 8
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Contact Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Number of Power Positions :
- 8
- Operating Supply Voltage :
- 250V
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 8
- Radiation Hardening :
- No
- Contact Current Rating :
- 5A
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Number of Terminations :
- 8
- Voltage - Rated :
- 250V
- Current Rating :
- 5A
- Contact Plating :
- Tin, Gold
- Pitch :
- 2.9972mm
- VDE Tested :
- yes
- Applications :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- Without
- Insulation Color :
- Black
- Plating :
- Gold
- Fastening Type :
- Locking Ramp
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Brass
- Max Operating Temperature :
- 221°C
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Shape :
- Square
- Circuit Application :
- Power
- Insulation Height :
- 0.290 7.37mm
- PCB Thickness :
- 1.57mm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Factory Lead Time :
- 18 Weeks
- Approval Agency :
- CSA
- Pitch - Mating :
- 0.118 3.00mm
- Max Voltage Rating (AC) :
- 250V
- Series :
- Micro MATE-N-LOK
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- ELV :
- Compliant
- Packaging :
- Tray
- Min Operating Temperature :
- -40°C
- Housing Color :
- Black
- Length :
- 16mm
- Number of Ports :
- 1
- Depth :
- 11.92mm
- Number of Rows :
- 2
- Plating Thickness :
- 2.54μm
- Datasheets
- 3-794619-8
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.290 7.37mm Height
3-794619-8 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Micro MATE-N-LOK Series.Use it when the temperature is below 221°C.Temperatures below -40°C are required for this device to operate.The device has 1 ports for managing a variety of tasks.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Lock feature.It is mounted by Through Hole.It has terminations of 8.Its operating supply voltage is 250V.It operates at an operating temperature of -40°C~105°C.
