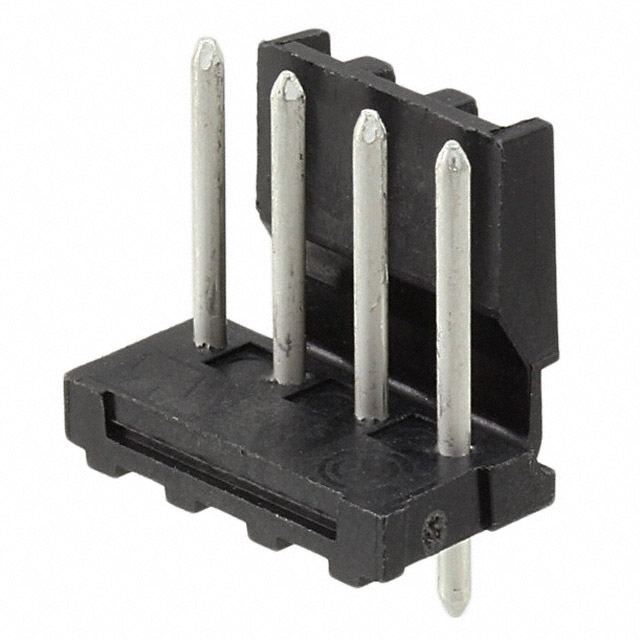

3-647648-4
Or copy the link below:
- Mfr.Part #
- 3-647648-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.96MM
- Stock
- 17,540
- In Stock ：
- 17,540
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Current Rating (Amps) :
- Varies by WireGAuge
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.156 3.96mm
- JESD-609 Code :
- e3
- Contact Shape :
- Circular
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- MIL Conformance :
- No
- Contact Resistance :
- 3mOhm
- Housing Material :
- Nylon
- Applications :
- General Purpose, Industrial
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.125 3.18mm
- Contact Finish - Mating :
- Tin
- Packaging :
- Bulk
- Fastening Type :
- Friction Lock
- Mixed Contacts :
- No
- Connector Type :
- Header
- Depth :
- 10.8mm
- Length :
- 15.72mm
- Contact Length - Mating :
- 0.450 11.43mm
- RoHS Status :
- RoHS Compliant
- Shrouding :
- Shrouded - 1 Wall
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 600V
- Number of Positions Loaded :
- All
- Contact Gender :
- Male
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Height :
- 0.545 13.84mm
- Number of Positions :
- 4
- Series :
- MTA-156
- Additional Feature :
- POLARIZATION AVAILABLE
- Voltage - Rated :
- 600VAC
- Voltage - Rated AC :
- 600V
- Orientation :
- Vertical
- Radiation Hardening :
- No
- Mating Post Length :
- 11.43mm
- Operating Temperature :
- -55°C~105°C
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Termination :
- Solder
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Housing Color :
- Black
- Terminal Pitch :
- 3.96mm
- ELV :
- Compliant
- Lead Length :
- 3.18mm
- Published :
- 2011
- Overall Contact Length :
- 0.700 17.78mm
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Datasheets
- 3-647648-4
3-647648-4 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.545 13.84mm Height
3-647648-4 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the MTA-156 Series.Other features include POLARIZATION AVAILABLE, to name just a few.There are a variety of possible applications for this device, including General Purpose, Industrial.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
3-647648-4 Features
MTA-156 series
3-647648-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-647648-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
