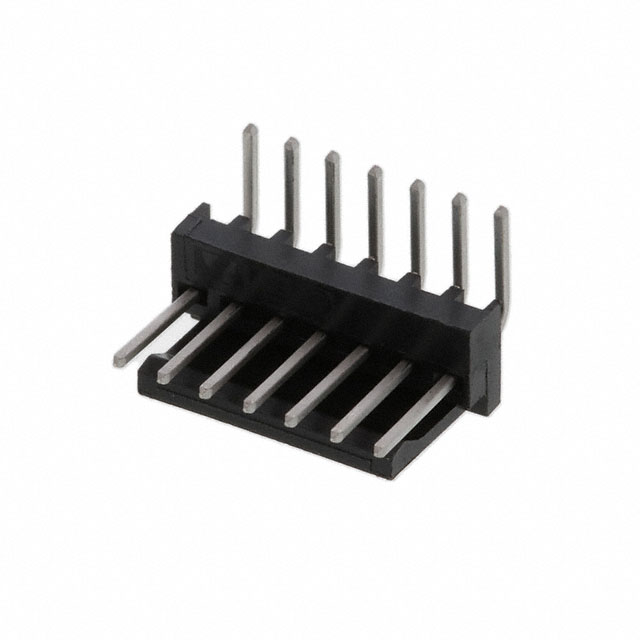

3-647630-7
Or copy the link below:
- Mfr.Part #
- 3-647630-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 7POS 2.54MM
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Black
- Published :
- 2008
- Current Rating :
- 5A
- Applications :
- GENERAL PURPOSE
- PCB Mount Retention :
- Without
- Housing Material :
- PBT
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 1 Wall
- Radiation Hardening :
- No
- Height :
- 8.81mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Sealable :
- No
- Termination :
- Solder
- Plating Thickness :
- 6.3μm
- Max Operating Temperature :
- 221°C
- Contact Material :
- COPPER ALLOY
- Number of Positions Loaded :
- All
- Pitch :
- 2.54mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Approval Agency :
- CSA
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Voltage - Rated :
- 250VAC
- Length - Tail :
- 3.56mm
- Min Operating Temperature :
- -67°C
- Number of Contacts :
- 7
- Plating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~105°C
- Contact Resistance :
- 6mOhm
- Underplate Material :
- Nickel
- Operating Supply Voltage :
- 250V
- ELV :
- Compliant
- Mating Retention :
- With
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.290 7.37mm
- Lead Length :
- 3.56mm
- Depth :
- 6.35mm
- Length :
- 17.78mm
- Contact Gender :
- Male
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Circuit Application :
- Signal
- Fastening Type :
- Friction Lock
- Mounting Type :
- Through Hole, Right Angle
- Contact Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Contact Finish - Post :
- Tin
- Max Voltage Rating (AC) :
- 250V
- Housing Color :
- Black
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Orientation :
- RIGHT ANGLE
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions :
- 7
- PCB Thickness :
- 1.5748mm
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.250 6.35mm
- Packaging :
- Bulk
- PCB Mount Alignment :
- Without
- Contact Length - Post :
- 0.140 3.56mm
- Mating Post Length :
- 7.37mm
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 5A
- Series :
- MTA-100
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Factory Lead Time :
- 18 Weeks
- Datasheets
- 3-647630-7
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 7-Position Board to Cable/Wire 0.250 6.35mm Height
3-647630-7 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the MTA-100 Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.General Purpose is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 250V.The device runs in -55°C~105°C Operating Temperature.
3-647630-7 Features
MTA-100 series
3-647630-7 Applications
There are a lot of TE Connectivity AMP Connectors
3-647630-7 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
