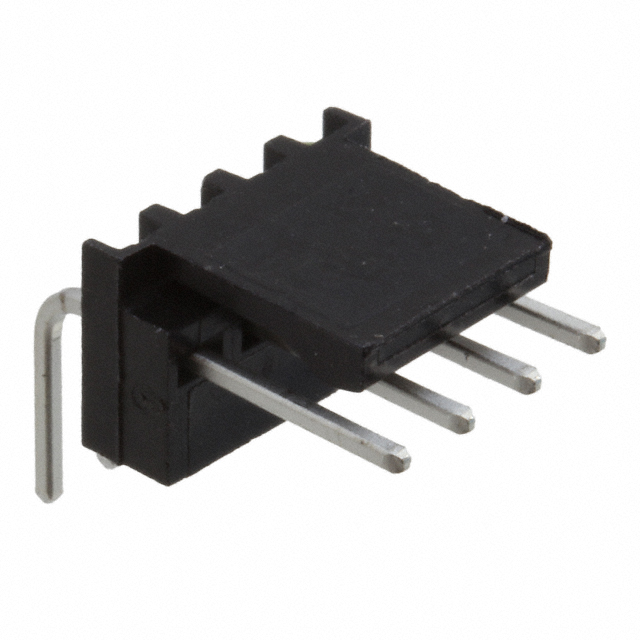

3-647630-4
Or copy the link below:
- Mfr.Part #
- 3-647630-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 2.54MM
- Stock
- 4,379
- In Stock ：
- 4,379
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 250VAC
- Contact Resistance :
- 6mOhm
- Contact Length - Mating :
- 0.290 7.37mm
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Length :
- 10.16mm
- Mixed Contacts :
- No
- Circuit Application :
- Signal
- Contact Length - Post :
- 0.140 3.56mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Max Voltage Rating (AC) :
- 250V
- PCB Mount Alignment :
- Without
- Mating Post Length :
- 7.37mm
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 1
- IEC Conformance :
- No
- Contact Shape :
- Square
- Connector Type :
- Header
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- DIN Conformance :
- No
- Operating Temperature :
- -55°C~105°C
- Depth :
- 6.35mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Approval Agency :
- CSA
- Pbfree Code :
- yes
- Sealable :
- No
- Contact Current Rating :
- 5A
- JESD-609 Code :
- e3
- Height :
- 8.81mm
- MIL Conformance :
- No
- Insulation Height :
- 0.250 6.35mm
- Current Rating :
- 5A
- Fastening Type :
- Friction Lock
- Factory Lead Time :
- 17 Weeks
- Housing Material :
- PBT
- Contact Type :
- Male Pin
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Length - Tail :
- 3.56mm
- Mating Retention :
- With
- Underplate Material :
- Nickel
- Operating Supply Voltage :
- 250V
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Series :
- MTA-100
- Termination :
- Solder
- Packaging :
- Bulk
- PCB Thickness :
- 1.5748mm
- Style :
- Board to Cable/Wire
- Applications :
- GENERAL PURPOSE
- Number of Positions :
- 4
- Plating Thickness :
- 6.3μm
- Mount :
- Through Hole
- Published :
- 2008
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Color :
- Black
- Datasheets
- 3-647630-4
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Cable/Wire 0.250 6.35mm Height
3-647630-4 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the MTA-100 Series.The device could be used for the following application: General Purpose.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -55°C~105°C Operating Temperature.
3-647630-4 Features
MTA-100 series
3-647630-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-647630-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
